Main technical parameters ntawm transformer winding tshuab |
|||
|
Yam khoom qauv |
SQ-600L |
SQ-800L |
SQ-1000L |
|
Txoj kab uas hla |
Ntau dua lossis sib npaug700 |
Ntau dua lossis sib npaug800 |
Ntau dua lossis sib npaug1000 |
|
Kab Dav |
Ntau dua lossis sib npaug600 |
Ntau dua lossis sib npaug700 |
Ntau dua lossis sib npaug800 |
|
Cable Arrangement raug |
0.01 |
0.01 |
0.01 |
|
Spindle Ceev |
1-1400rpm |
1-1400rpm |
1-1400rpm |
|
Spindle Center Qhov siab |
700 hli |
700 hli |
700 hli |
|
Siv tau Wire Diameter |
Round xaim: 01-3mm Flat hlau:Ntau dua lossis sib npaug 2 x 10 mm |
Round xaim: 01-3mm Flat hlau:Ntau dua lossis sib npaug 2 x 10 mm |
Round xaim: 01-3mm Flat hlau:Ntau dua lossis sib npaug 2 x 10 mm |
|
Cable Tsav |
Servo 0.75KW |
Servo 0.75KW |
Servo 0.75KW |
|
Spindle Tsav |
Kev hloov pauv zaus 2.2KW 1 * 10 |
Kev hloov pauv zaus 2.2KW 1 * 10 |
Kev hloov pauv zaus 2.2KW 1 * 10 |
|
Cov khoom siv hluav taws xob |
220VAC 50HZ |
220VAC 50HZ |
220VAC 50HZ |
|
Tshuab fais fab |
3 KW |
3 KW |
3 KW |
|

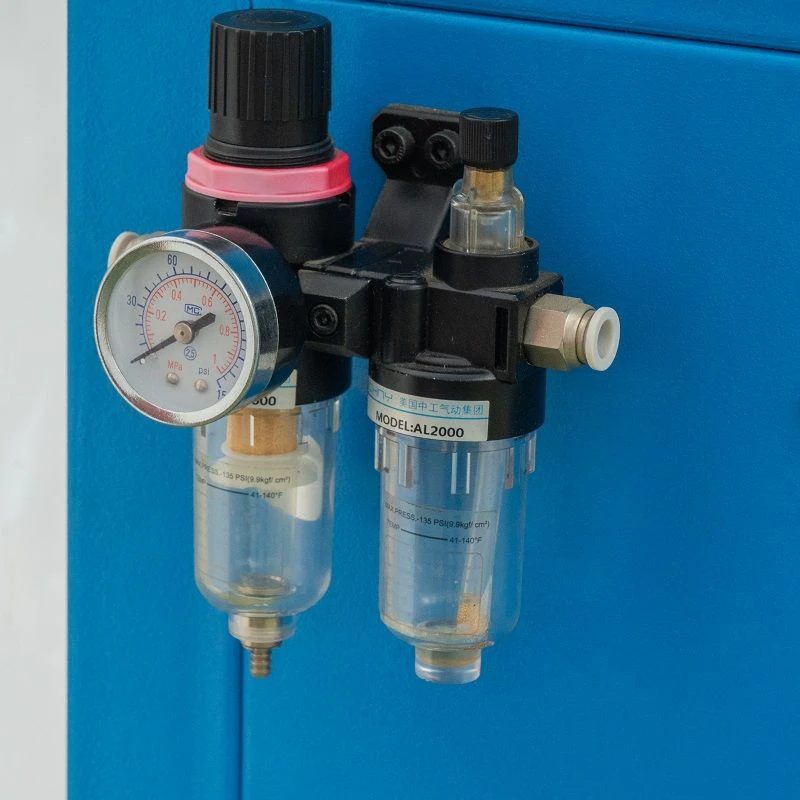

Sib Nqus |
Pneumatic adjustable tensioner |
Pneumatic adjustable tensioner |
Pneumatic adjustable tensioner |
|
Qhov ntev |
1500 hli (L) * 1000 hli (W) * 1400 hli (H) |
1650mm (L) * 1100 hli (W) * 1400mm (H) |
1800 hli (L) * 1100 hli (W) * 1400 hli (H) |
|
Khoom hnyav |
5 40 KG |
6 40 KG |
7 40 KG |
Cov yam ntxwv zoo

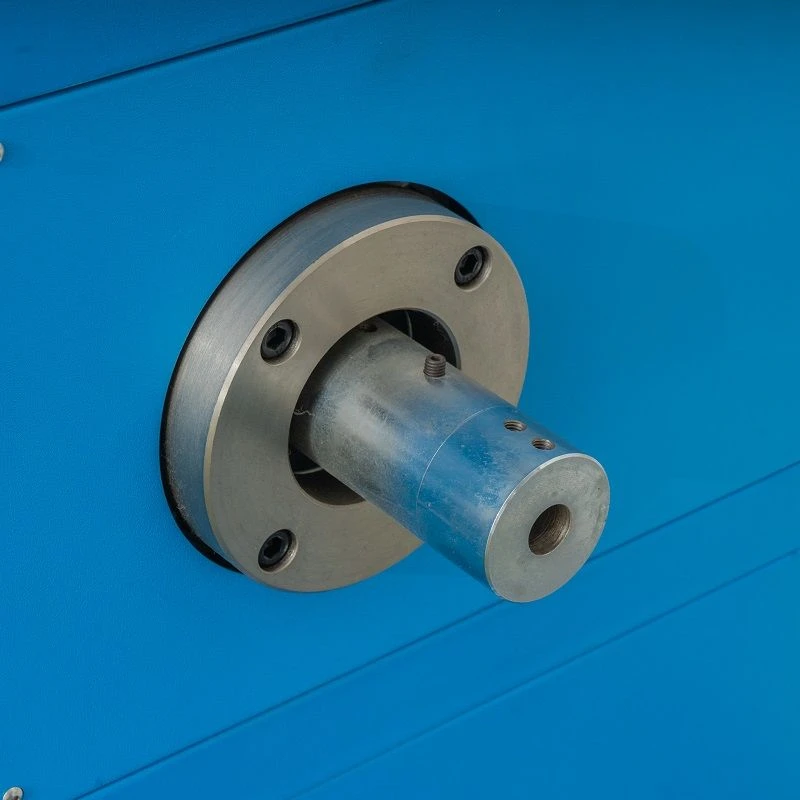

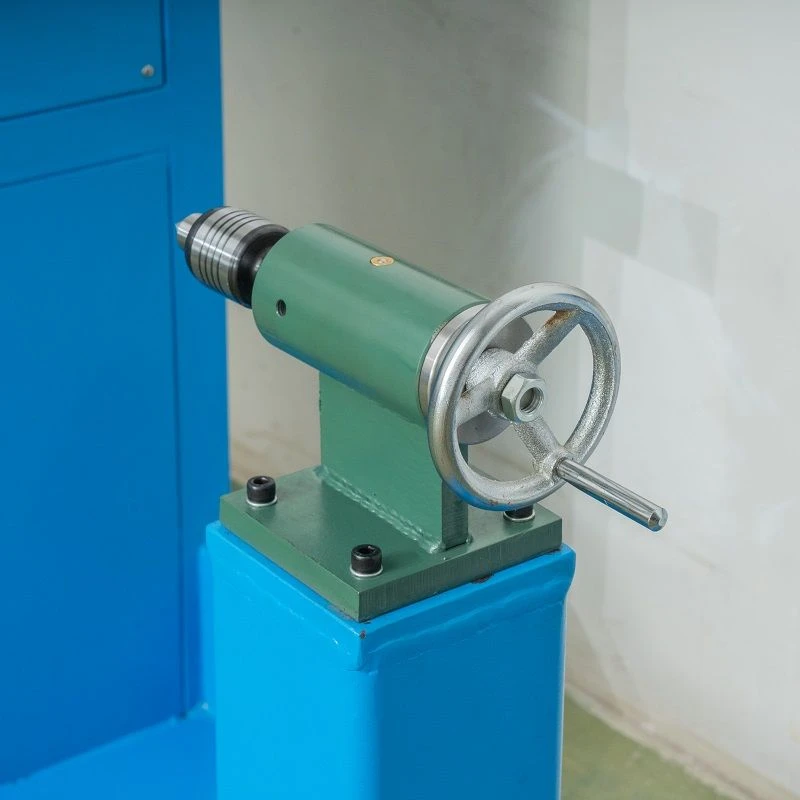

1: Winding spindle:
Nws yuav tsum muaj lub zog txaus thiab kev ruaj ntseg los txhawb qhov hnyav thiab lub zog ntawm cov tub ntxhais los yog winding pwm ntawm cov ntub dej transformer thaum lub sij hawm tig. Nws qhov nrawm feem ntau tuaj yeem hloov kho raws li cov txheej txheem winding, thiab nws muaj kev tswj xyuas kev sib hloov siab kom ntseeg tau tias qhov sib xws ntawm winding.

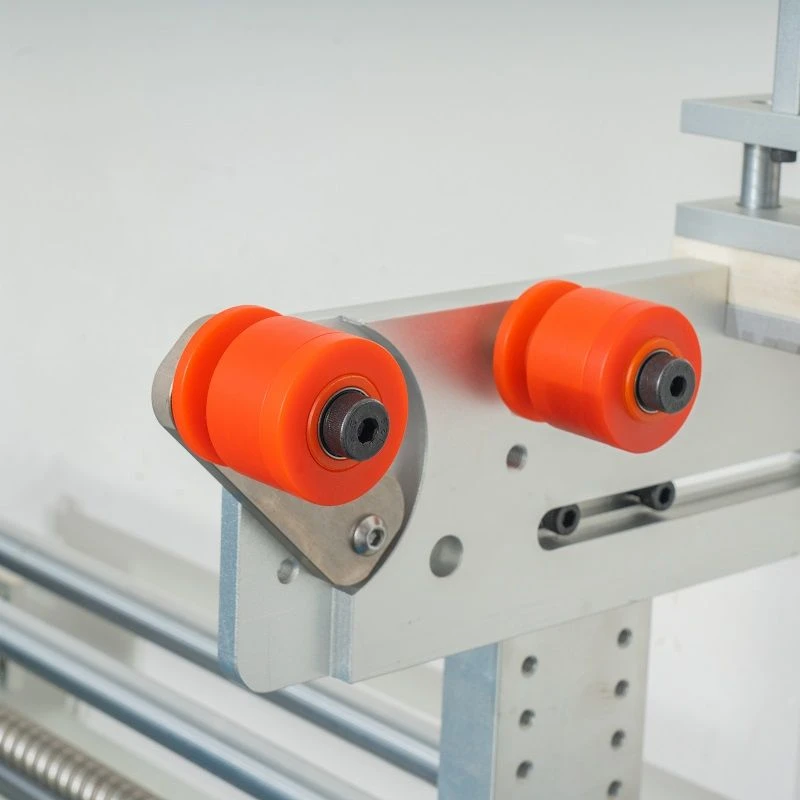

2: Kev teeb tsa cable:
Zoo ib yam li lwm cov tshuab winding, nws yog lub luag haujlwm rau kev npaj cov xov hlau kom zoo zoo ntawm cov tub ntxhais lossis cov pwm winding. Txij li cov kev hloov pauv ntub dej tuaj yeem muaj cov kev cai tshwj xeeb rau kev rwb thaiv tsev thiab kev cog lus ntawm cov coils, cov txheej txheem xaim yuav tsum tau ua kom raug siab dua thiab tuaj yeem tswj tau qhov sib txawv ntawm cov xaim thiab xaim kev taw qhia.

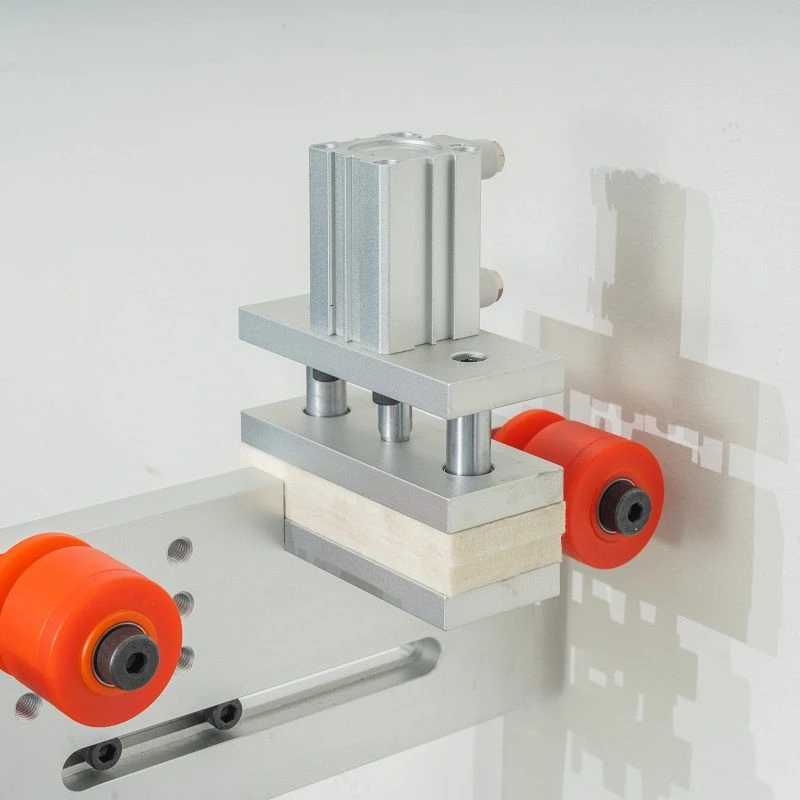

3: Tension tswj qhov system:
Txhawm rau ua kom lub zog winding zoo, qhov system no tuaj yeem ua kom ntseeg tau tias cov hlau muaj qhov ruaj khov thiab tsim nyog nruj thaum lub sij hawm winding txheej txheem. Nyob rau hauv ntub transformer winding, tsim nyog nro pab tiv thaiv cov teeb meem tshwm sim los ntawm xoob xaim nyob rau hauv ib qho chaw ntub dej, thaum tsis txhob muaj kev puas tsuaj rau cov hlau rwb thaiv tsev txheej vim muaj zog heev.

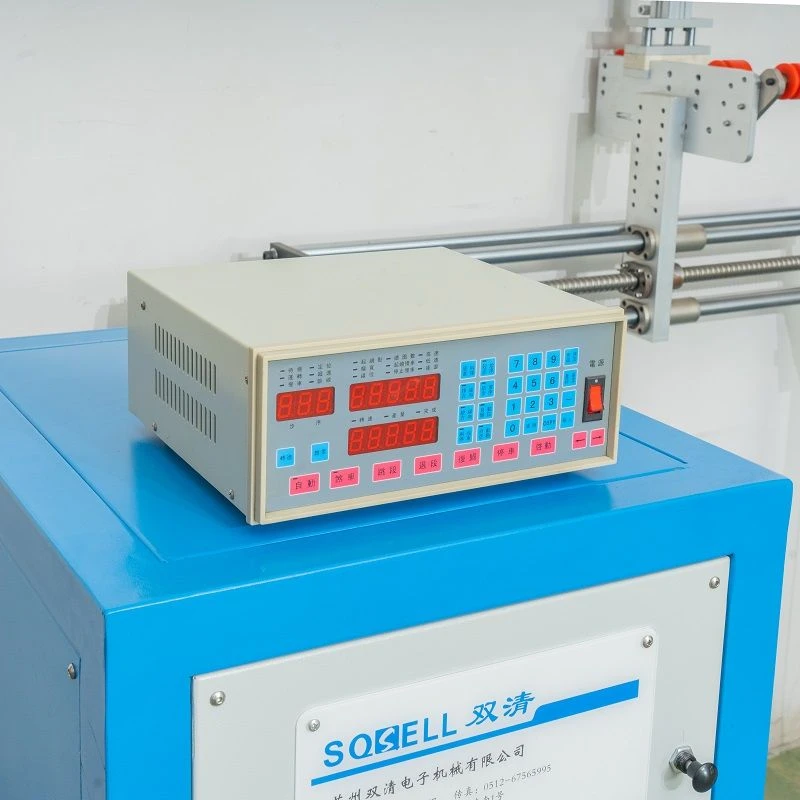

4: Shuangqing CNC -200 tswj qhov system:
Tus naj npawb ntawm cov lem, winding ceev, thaiv tsis tau thiab nro ntawm winding tuaj yeem tswj tau qhov tseeb. Qee qhov kev tswj hwm qib siab kuj tseem tuaj yeem khaws cov kev txwv winding ntawm ntau hom kev hloov pauv ntub kom yooj yim hu thiab hloov.
Khoom Paub meej
Qhov zoo
1: High winding raug
2: Txhim kho efficiency
3: Kho kom haum rau qhov chaw tshwj xeeb
FAQ
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: Peb xa tawm thaum them nyiaj.
Q: Yog tias peb muaj lwm yam khoom yuav tsum tau ua uas koj nplooj ntawv tsis suav nrog, koj puas tuaj yeem pab muab rau lawv?
A: Cov khoom siv tuaj yeem kho raws li cov neeg siv khoom xav tau.
Q: Koj puas muaj warranty rau koj cov khoom?
A: Chaw tsim tshuaj paus warranty
Q: Dab tsi txiav txim siab qhov tseeb winding ntawm lub tshuab winding?
A: Qhov tseeb winding feem ntau yog nyob ntawm tus neeg kho tshuab qauv raug ntawm cov khoom siv. Piv txwv li, qhov tseeb ntawm cov txheej txheem xaim yuav cuam tshuam qhov zoo ntawm cov xaim kev teeb tsa. Nyob rau tib lub sijhawm, qhov tseeb ntawm kev tswj hwm qhov system kuj tseem ceeb heev. Kev tswj hwm qib siab tuaj yeem tswj tau lub kaum sab xis thiab nrawm ntawm lub cev kom paub meej tias qhov tseeb ntawm winding.
