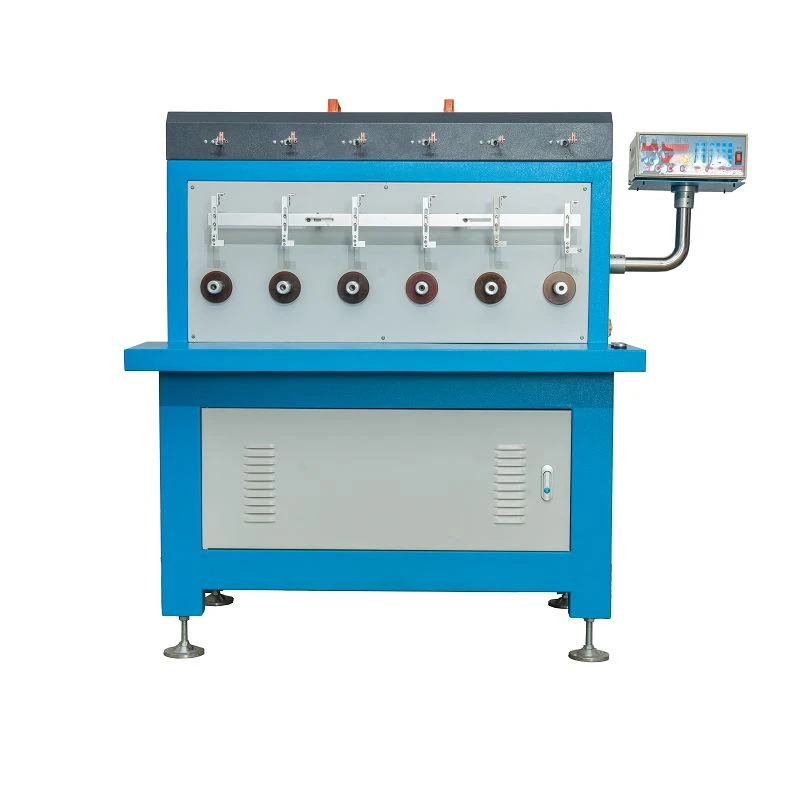

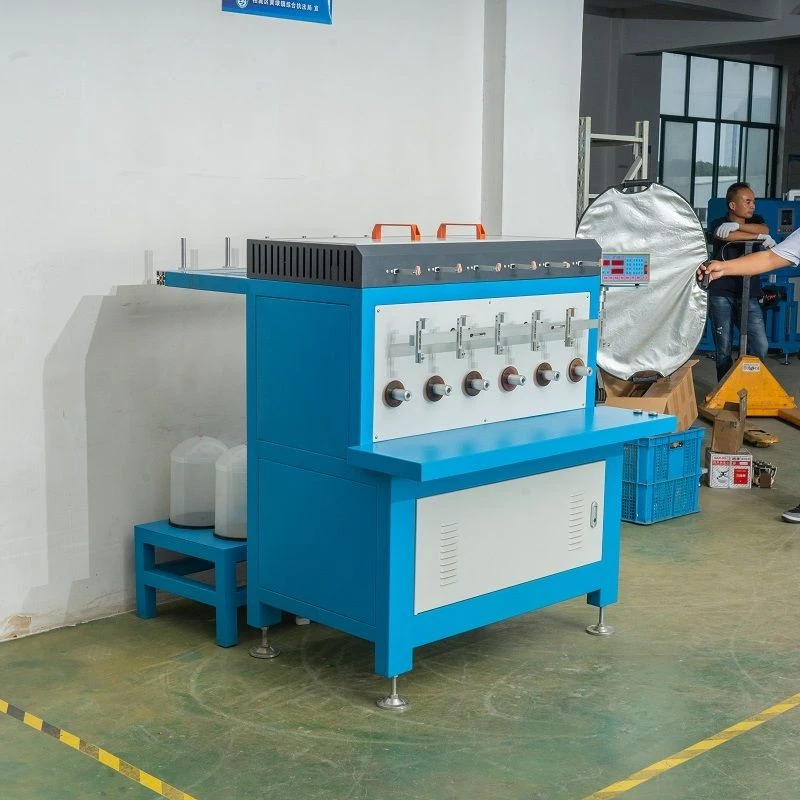

Main technical parameters ntawm multi-axis winding tshuab |
|||
|
Yam khoom qauv |
SQ-004LD |
SQ-006LD |
SQ-006HU |
|
Txoj kab uas hla |
10-60 hli |
10-150 hli |
10-150 hli |
|
Kab Dav |
0-120 hli |
0-120 hli |
0-120 hli |
|
Cable Arrangement raug |
0.01 |
0.01 |
0.01 |
|
Spindle Ceev |
30-5000rpm |
1-2000rpm |
1-2000rpm |
|
Spindle Center Qhov siab |
150 hli |
170 hli |
170 hli |
|
Siv tau Wire Diameter |
{0}}03-1.0mm |
0 03-1.5 hli |
0 03-1.5 hli |
|
Cable Tsav |
Stepper lub cev muaj zog 57 |
Panasonic Servo 0.4KW |
Panasonic Servo 0.4KW |
|
Spindle Tsav |
zaus conversion 0.4KW |
zaus conversion 0.75KW |
Kev hloov pauv zaus 1.5KW |
|
Cov khoom siv hluav taws xob |
220VAC 50HZ |
220VAC 50HZ |
220VAC 50HZ |
|
Tshuab fais fab |
1.2 KW TSI |
1.8 KW TSI |
2.7 KW TSI |
|

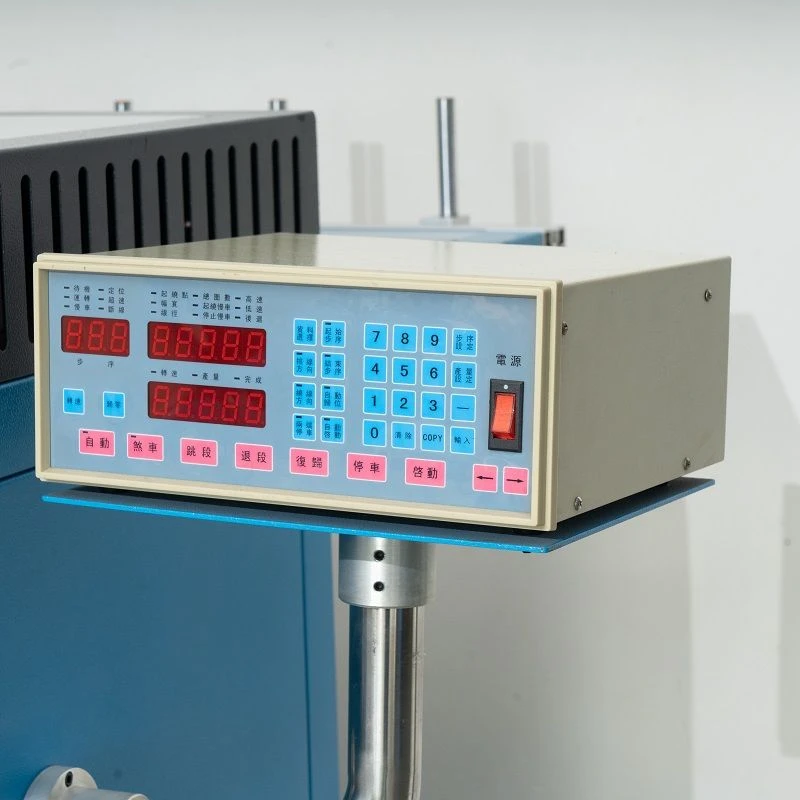

Tswj System |
Shuangqing SQ-200A |
Shuangqing SQ-200A |
Shuangqing SQ-200A |
|
Txhawb Hlau Rack |
Plaub-axis |
Rau-axis |
Rau-axis |
|

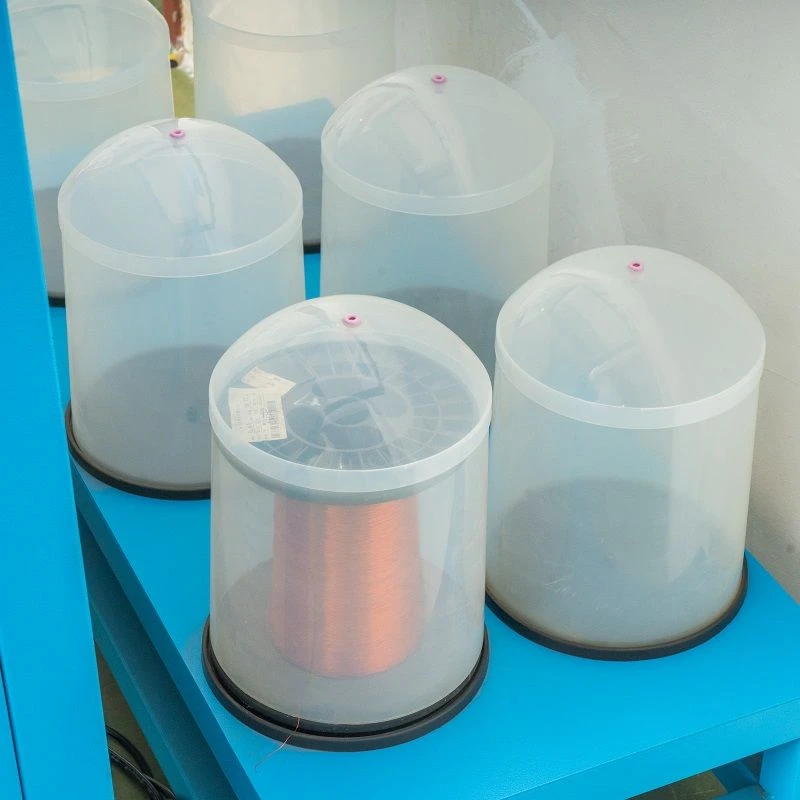

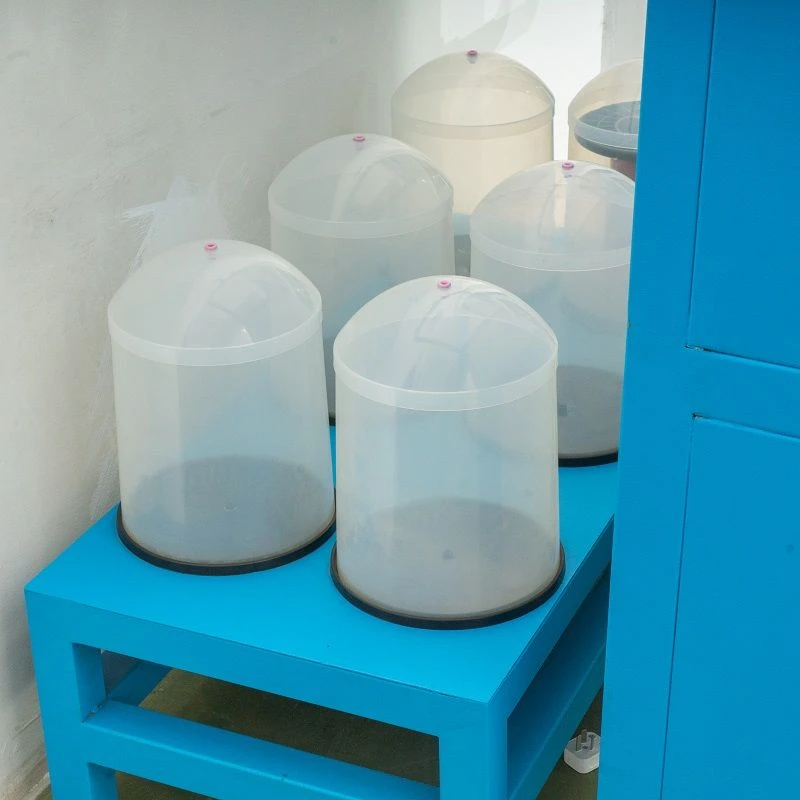

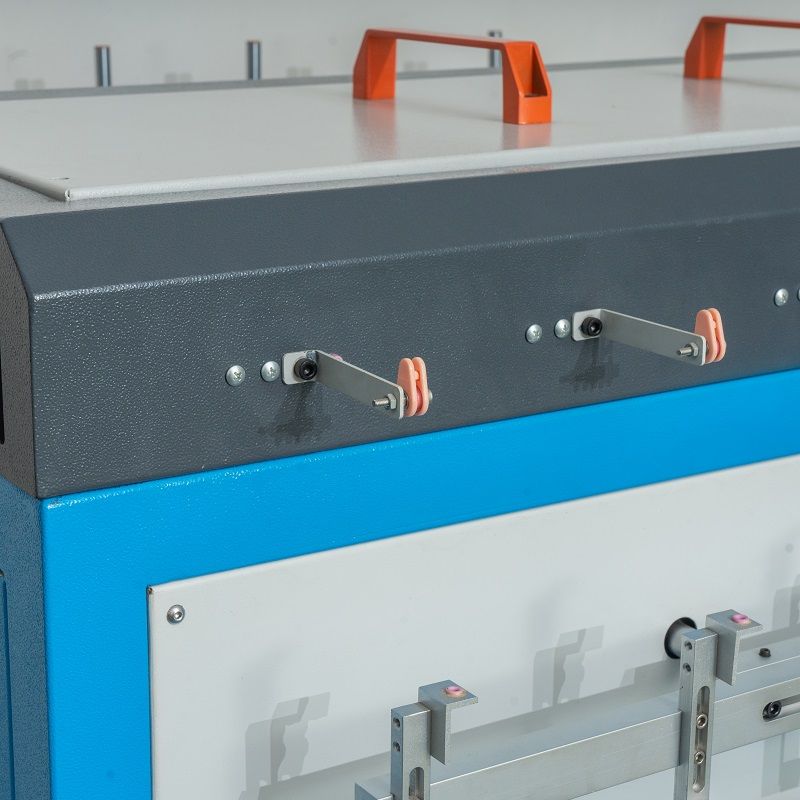

Sib Nqus |
Precision adjustable tensioner 4 poob lawm |
Precision adjustable tensioner 6 poob lawm |
Precision adjustable tensioner 6 poob lawm |
|
Qhov ntev |
1500 hli (L) * 1000 hli (W) * 1500 hli (H) |
1600mm (L) * 1500 hli (W) * 1500mm (H) |
1600mm (L) * 1500 hli (W) * 1500mm (H) |
|
Khoom hnyav |
110 KG |
170 KG |
170 KG |
Cov yam ntxwv zoo

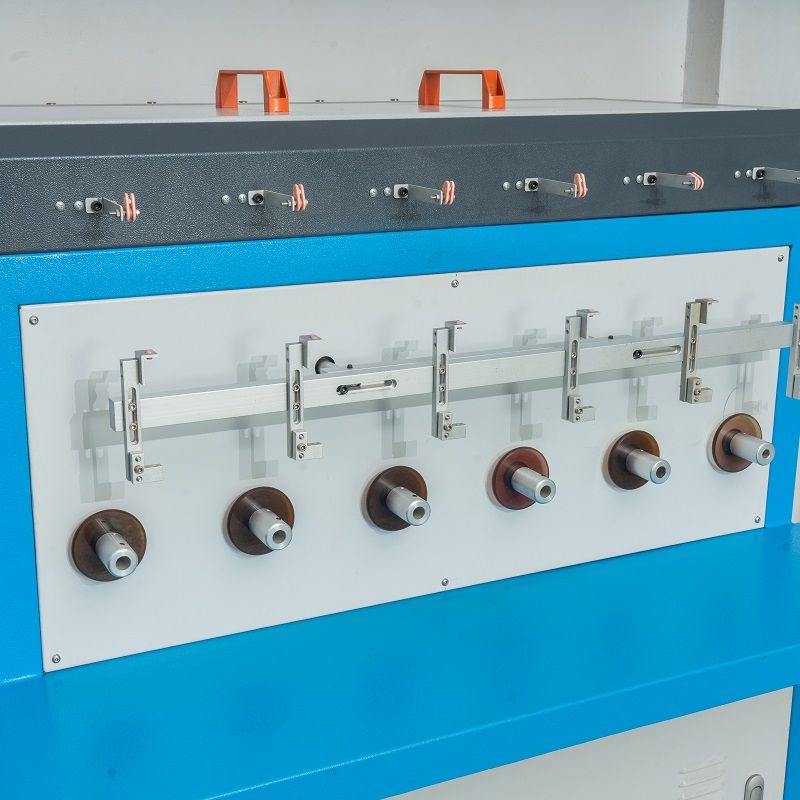

1: Multi-axis tsim:
Qhov no tso cai rau lub tshuab winding kom cua ntau lub coils tib lub sijhawm, txhim kho kev tsim khoom zoo heev.
2: High precision kis tau tus mob:
Nruab nrog high-precision synchronous pulleys los xyuas kom meej lub zog ntawm txhua axis, txoj hauj lwm, ceev thiab lub kaum sab xis ntawm lub winding yuav raug tswj xyuas kom meej winding zoo.
Khoom Paub meej
Muaj nuj nqi thiab qhov zoo
1: High degree ntawm automation
2: Ntau hom winding
3: Precision winding
Cov cheeb tsam thov
1: Electronics Kev Lag Luam:
Nws yog dav siv nyob rau hauv zus tau tej cov tshiab lub zog tsheb, aerospace, motors, electromagnetics thiab lwm yam Cheebtsam kom tau raws li lawv xav tau kev pab rau miniaturized thiab high-precision coils.
2: Automotive Electronics:
Lub ignition coil ntawm lub tsheb, lub inductor nyob rau hauv lub electronic control unit (ECU), thiab lwm yam kuj yuav tsum tau ib tug multi-axis winding tshuab los xyuas kom meej lub winding zoo thiab kev ua tau zoo kom haum rau cov complex ua hauj lwm ib puag ncig ntawm lub tsheb.
3: Kev lag luam automation teb:
Xws li winding ntawm lub cev muaj zog windings, sensor coils, thiab lwm yam., muab cov khoom zoo coil rau cov khoom siv automation.
FAQ
Q: Lub sijhawm lav ntev npaum li cas?
A: Lub sijhawm lav: 1 xyoos
Q: Dab tsi ntawm txoj kab uas hla ntawm lub cuab yeej tuaj yeem ua cua?
A: Nws nyob ntawm koj cov khoom. Thov tso koj cov ntaub ntawv tiv tauj thiab peb yuav npaj cov neeg siv khoom los tiv tauj koj.
Q: Dab tsi txiav txim siab qhov tseeb winding ntawm lub tshuab winding?
A: Qhov tseeb winding feem ntau yog nyob ntawm tus neeg kho tshuab qauv raug ntawm cov khoom siv. Piv txwv li, qhov tseeb ntawm cov txheej txheem xaim yuav cuam tshuam qhov zoo ntawm cov xaim kev teeb tsa. Nyob rau tib lub sijhawm, qhov tseeb ntawm kev tswj hwm qhov system kuj tseem ceeb heev. Kev tswj hwm qib siab tuaj yeem tswj tau lub kaum sab xis thiab nrawm ntawm lub cev kom paub meej tias qhov tseeb ntawm winding.
Q: Kuv yuav tsum xyuam xim rau dab tsi thaum pib lub tshuab winding?
A: Ua ntej pib lub tshuab, xyuas seb cov hlua hluav taws xob ntawm cov khoom puas tau txuas nrog zoo thiab seb txhua yam khoom puas nyob hauv qhov qub. Tsis tas li xyuas kom tsis txhob muaj cov khib nyiab hauv qhov chaw ua haujlwm kom tsis txhob cuam tshuam rau kev ua haujlwm ntawm cov cuab yeej siv lossis ua rau muaj kev nyab xeeb.
