Main technical parameters ntawm lub cev muaj zog stator coil winding tshuab |
|
|
Yam khoom qauv |
SQ-D118L |
|
Txoj kab uas hla |
Ntau dua lossis sib npaug200 |
|
Kab Dav |
Ntau dua lossis sib npaug600 |
|
Cable Arrangement raug |
0.01 |
|
Spindle Ceev |
1-1000rpm |
|
Spindle Center Qhov siab |
230 hli |
|
Siv tau Wire Diameter |
Copper round hlau: thiab ib ncig ntawm 0 02-3mm Copper ca hlau: stack windingNtau dua lossis sib npaug2X10 |
|
Cable Tsav |
Panasonic Servo 0.4KW |
|
Hlau Feeding Tsav |
Panasonic Servo 0.4KW |
|

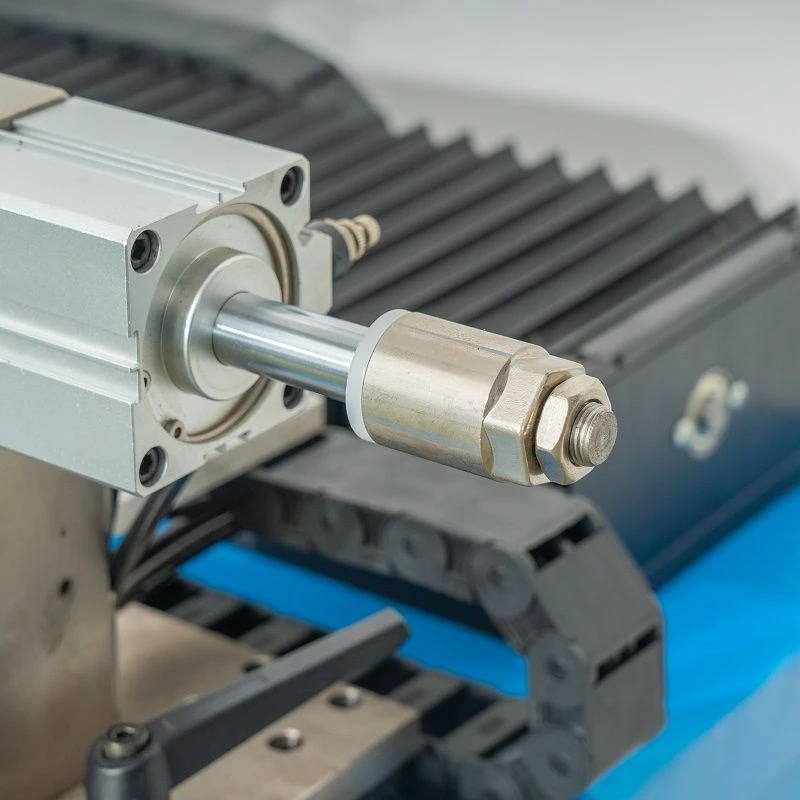

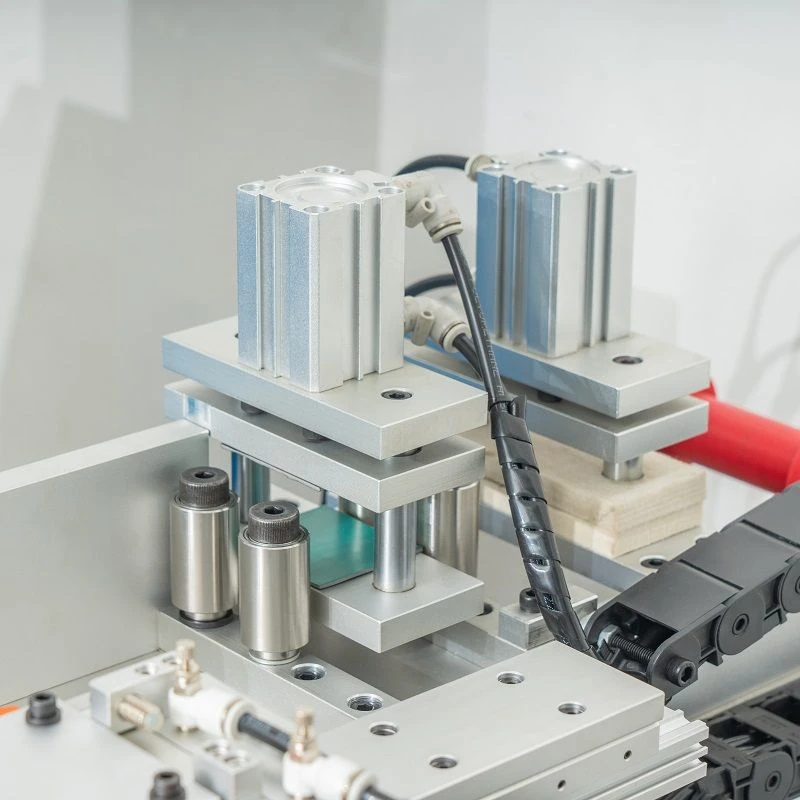

Txiav Capacity |
PneumaticNtau dua lossis sib npaug20 Square tooj liab hlau |
|
Hlau pub Length |
1-200 hli |
|
Number of Winding Slots |
1-12 |
|
Spindle Tsav |
Lub cev muaj zog 2.2KW |
|
Cov khoom siv hluav taws xob |
220VAC 50HZ |
|
Tshuab fais fab |
3.3 KW TSI |
|
Sib Nqus |
Sib nqus hmoov tsis siv neeg tswj tensioner |
|
Qhov ntev |
1600mm (L) * 1000 hli (W) * 1400mm (H) |
|
Khoom hnyav |
2 90 KG |

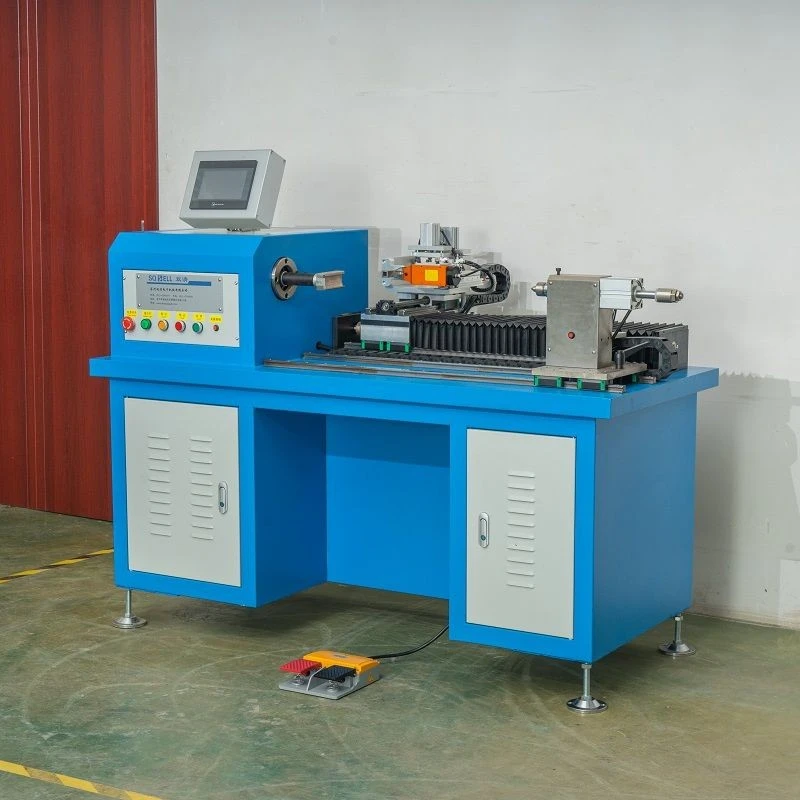

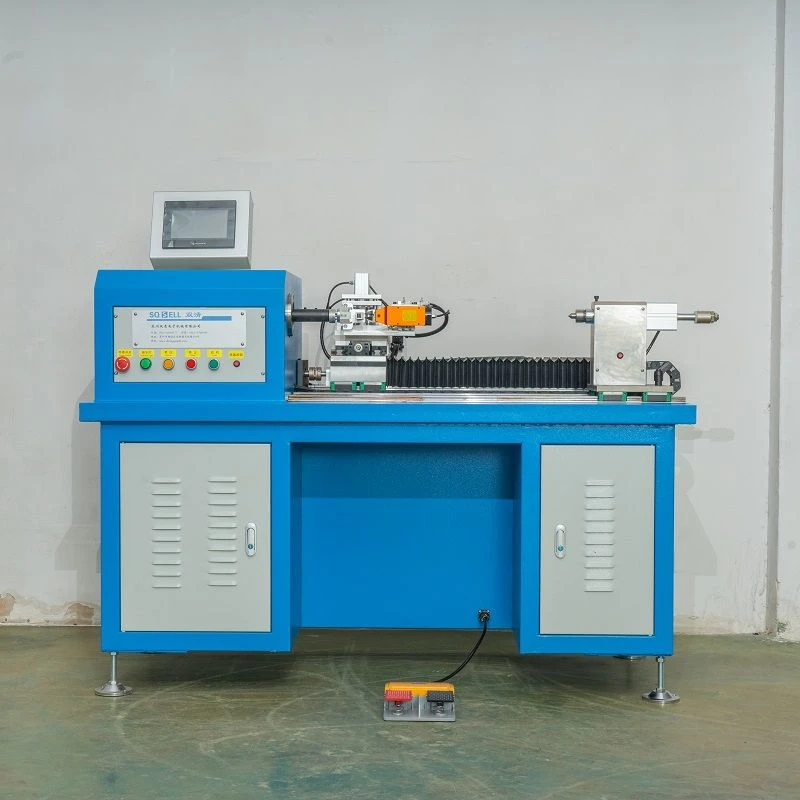

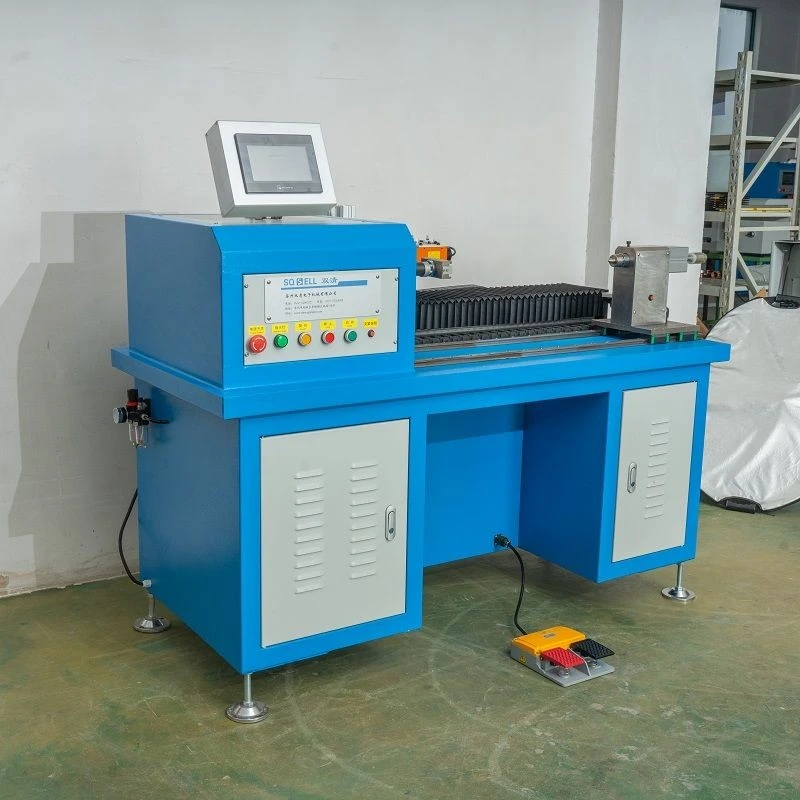

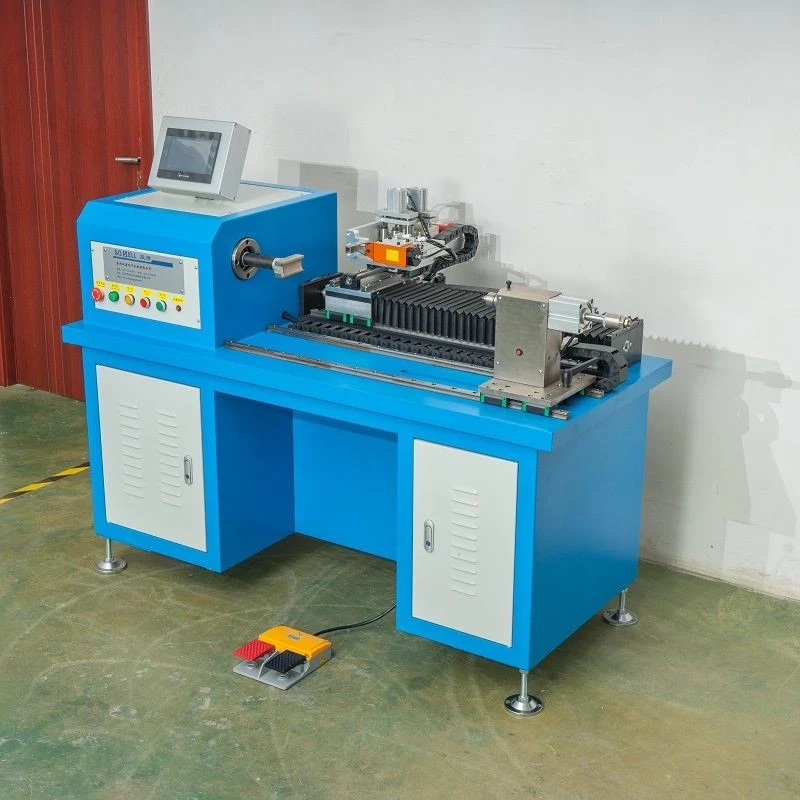

SQ-D118L lub cev muaj zog stator coil winding tshuab yog tus kheej tsim los ntawm Suzhou Shuangqing Electronic Machinery Co., Ltd. Nws muaj lub luag haujlwm ntawm tag nrho tsis siv neeg hlau pub, txiav, thiab hla cov qhov. Hauv qab no yog nws cov lus qhia ntxaws:
Cov yam ntxwv zoo
1: Winding spindle:
Nws yog qhov tseem ceeb ntawm lub tshuab winding, siv los kho lub cev muaj zog stator core block. Nws tus qauv tsim yuav tsum ua kom muaj kev ruaj ntseg ntawm cov tub ntxhais stator thaum tig ntawm kev kub ceev, thiab tuaj yeem koom tes nrog lub cev muaj zog kom ua tiav qhov sib txawv ntawm kev sib hloov kom tau raws li cov kev xav tau ntawm ntau lub cev muaj zog stator coils.

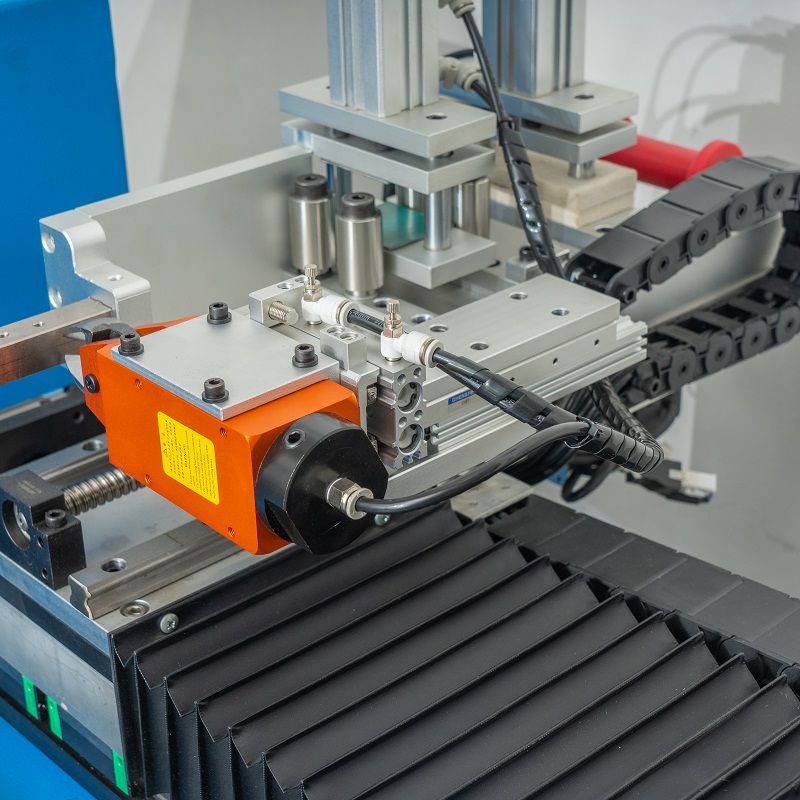

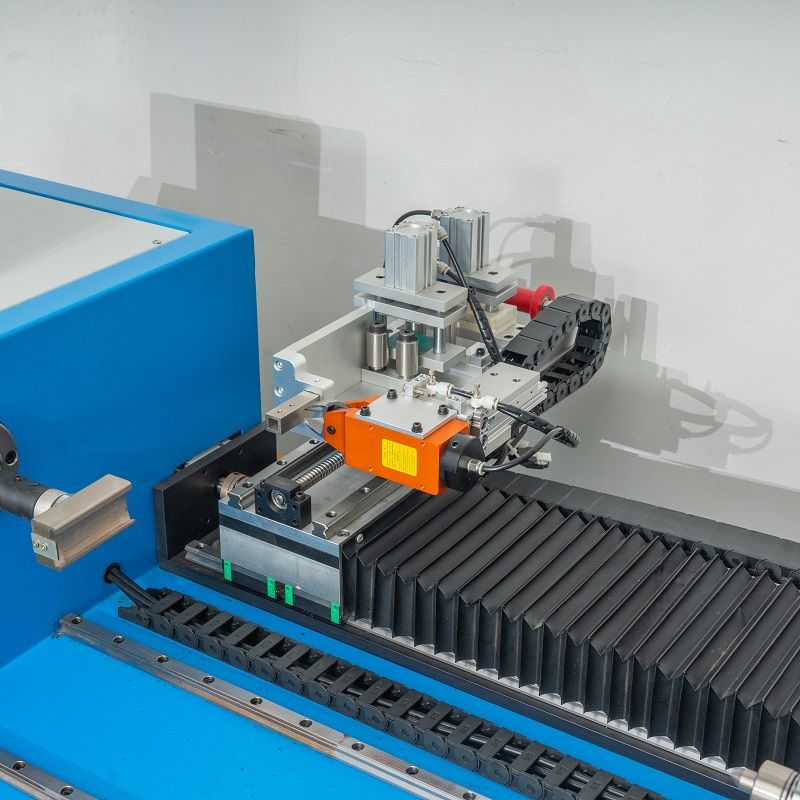

2: Kev teeb tsa cable:
Lub luag haujlwm tseem ceeb yog npaj cov enameled nyob ntawm tej thiab lwm yam conductors tusyees thiab raug nyob rau hauv cov hlau slots ntawm lub stator core. Los ntawm qhov kev sib kis tau zoo thiab kev tswj hwm qhov system, cov txheej txheem xaim xaim tuaj yeem tswj hwm txoj haujlwm xaim thiab hla qhov chaw raws li qhov tsis muaj xws li cov xov tooj ntawm stator hlau qhov thiab tus lej ntawm cov kauj.
3: Tension tswj qhov system:
Txhawm rau kom ntseeg tau tias lub tshuab winding zoo, lub zog tswj kev nruj yuav saib xyuas thiab kho qhov nro ntawm cov hlau nyob rau lub sijhawm. Qhov tsim nyog nro tuaj yeem ua rau cov hlau nruj thiab zoo huv si ntawm lub stator, kom tsis txhob muaj qhov xwm txheej uas cov hlau yog xoob los yog nruj heev thiab tawg. Piv txwv li, qhov kev tiv thaiv ntawm cov nyiaj them rov qab tuaj yeem hloov kho los ntawm kev sib koom tes ntawm qhov nro sensor thiab cov cuab yeej nres.

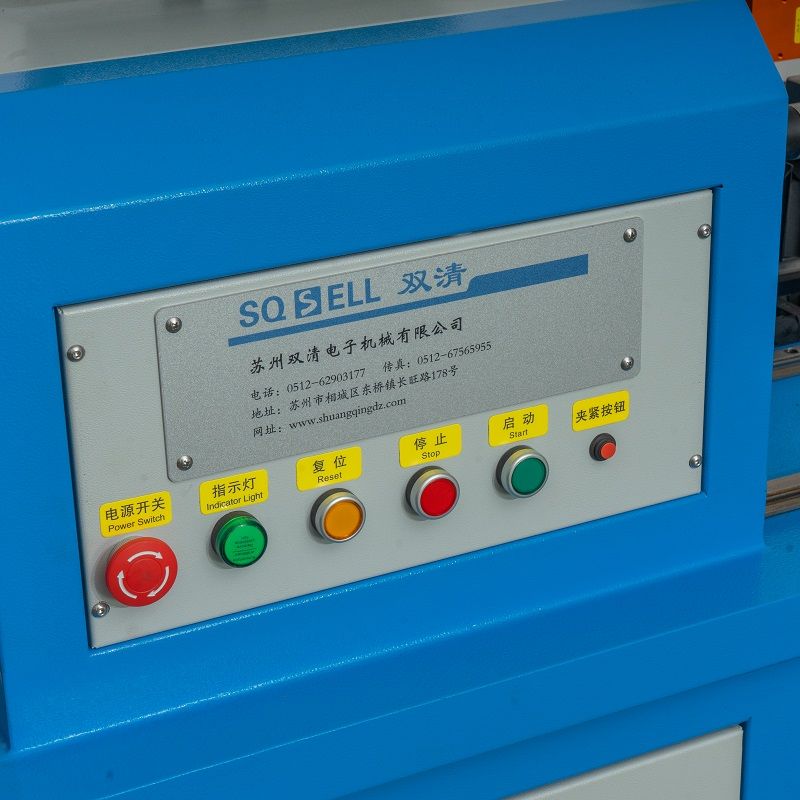

4: Shuangqing PLC winding tshuab tswj qhov system:
Qhov no yog lub hauv paus ntawm lub cev muaj zog stator coil winding tshuab, uas tuaj yeem paub txog tib neeg-lub computer kev sib cuam tshuam thiab hloov ntawm Suav thiab Askiv. Tus neeg teb xov tooj tuaj yeem nkag mus rau tus qauv stator, coil tig, winding ceev, tus lej xov tooj, xaim teeb tsa suab thiab lwm yam tsis muaj nyob rau hauv kev tswj hwm. Lub kaw lus tswj kev tswj xyuas kev ua haujlwm ntawm winding spindle, xaim kev teeb tsa mechanism thiab kev tswj nruj raws li cov lus qhia no kom ntseeg tau tias cov txheej txheem winding tau ua tiav thiab ua tau zoo.
Khoom Paub meej
Qhov zoo
1: Txhim kho ntau lawm efficiency
2: Txo kev siv zog ua haujlwm
FAQ
Q: Lub sijhawm lav ntev npaum li cas?
A: Lub sijhawm lav: 1 xyoos
Q: Lub sijhawm xa khoom ntawm cov khoom yog dab tsi?
A: Tus qauv khoom xa tuaj lub sijhawm yog 15 hnub, cov khoom siv tsis raug cai yog 30 hnub.
Q: Cov khoom siv hluav taws xob yog dab tsi?
A: Peb cov khoom siv tau tsim nrog AC220V thiab 380V, thiab tuaj yeem hloov kho raws li cov neeg siv khoom xav tau.
Q: Puas tuaj yeem hloov kho qhov ceev ntawm lub tshuab winding?
A: Lub winding ceev ntawm lub tshuab winding tuaj yeem hloov kho. Los ntawm kev tswj vaj huam sib luag ntawm cov cuab yeej, qhov tsim nyog winding ceev tuaj yeem hloov kho raws li qhov sib txawv winding yuav tsum tau, xws li txoj kab uas hla, xov tooj ntawm lub kauj thiab lwm yam.
