Main technical parameters ntawm universal tsis siv neeg winding tshuab |
|||
|
Yam khoom qauv |
SQ-D810L |
SQ-D810LC |
SQ-D810 LE |
|
Txoj kab uas hla |
20-300 hli |
20-300 hli |
20-300 hli |
|
Kab Dav |
0-300 hli |
0-300 hli |
0-300 hli |
|
Cable Arrangement raug |
0.01 |
0.01 |
0.01 |
|
Spindle Ceev |
1-280rpm |
1-280rpm |
1-280rpm |
|
Spindle Center Qhov siab |
300 hli |
300 hli |
300 hli |
|
Siv tau Wire Diameter |
Round hlau: 1-3mm 2 strips Pav ca hlau: 1.5X12mm 2 strips |
Round hlau: 1-3mm 2 strips Pav ca hlau: 1.5X12mm 2 strips |
Round hlau: 1-3mm 2 strips Pav ca hlau: 1.5X12mm 2 strips |
|
Cable Tsav |
Servo 0.75KW |
Servo 0.75KW |
Servo 0.75KW |
|
Spindle Tsav |
Kev hloov pauv zaus 1.5KW 1 * 10 |
Kev hloov pauv zaus 1.5KW 1 * 10 |
Kev hloov pauv zaus 1.5KW 1 * 10 |
|
Cov khoom siv hluav taws xob |
220VAC 50HZ |
220VAC 50HZ |
220VAC 50HZ |
|
Tshuab fais fab |
2.2 KW TSI |
2.2 KW TSI |
2.2 KW TSI |
|
Khoom siv yas |
tsis muaj |
Pneumatically adjustable |
Pneumatically adjustable |
|
Tailstock |
tsis muaj |
Pneumatically adjustable |
Pneumatically adjustable |
|
Txhawb Hlau Rack |
Ib axis, dual axis, plaub axis |
Ib axis, dual axis, plaub axis |
Ib axis, dual axis, plaub axis |
|
Sib Nqus |
Pneumatically adjustable |
Pneumatically adjustable |
Magnetic Powder Electronic Tensioner |
|
Qhov ntev |
1700mm (L) * 800 hli (W) * 1500mm (H) |
1700mm (L) * 800 hli (W) * 1500mm (H) |
1700mm (L) * 800 hli (W) * 1500mm (H) |
|
Khoom hnyav |
340 KG |
340 KG |
340 KG |

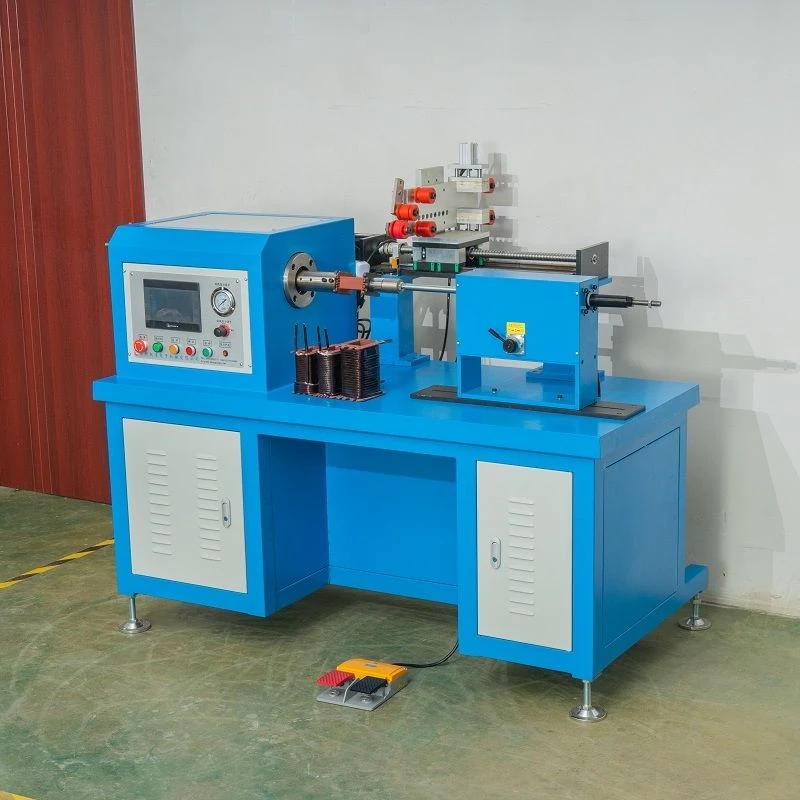

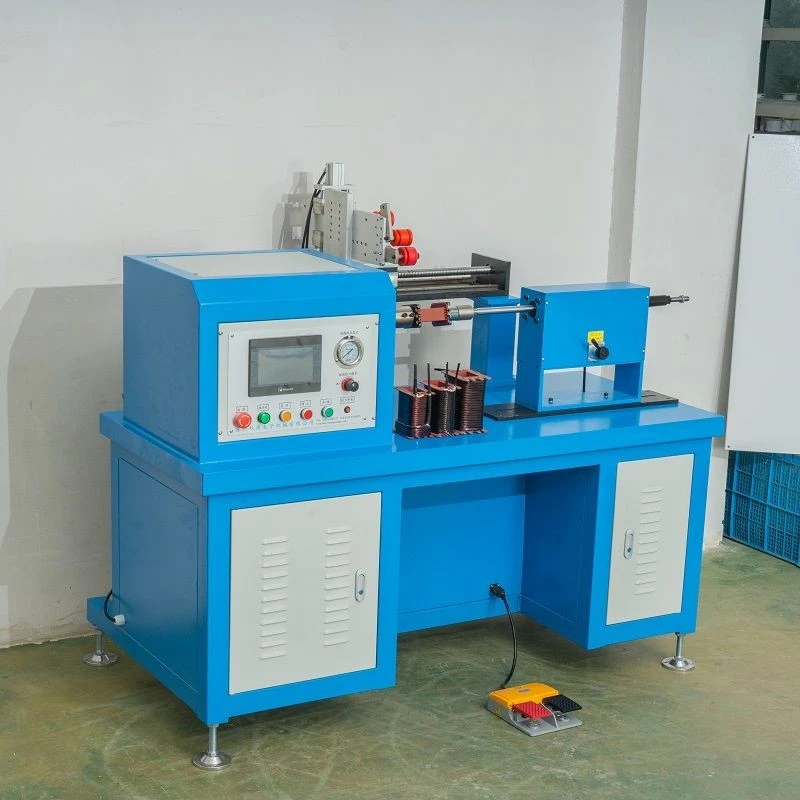

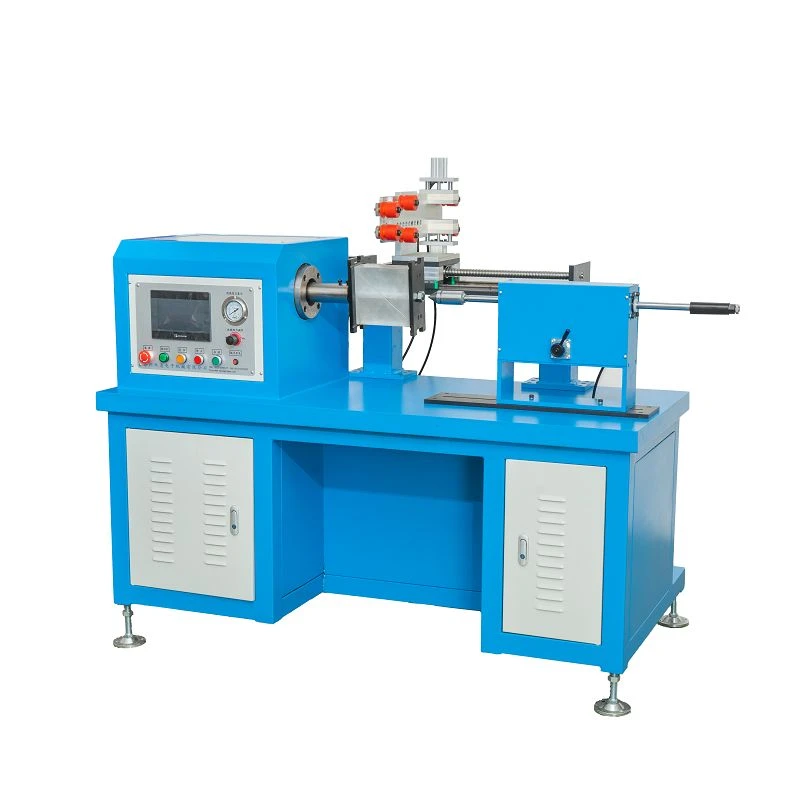

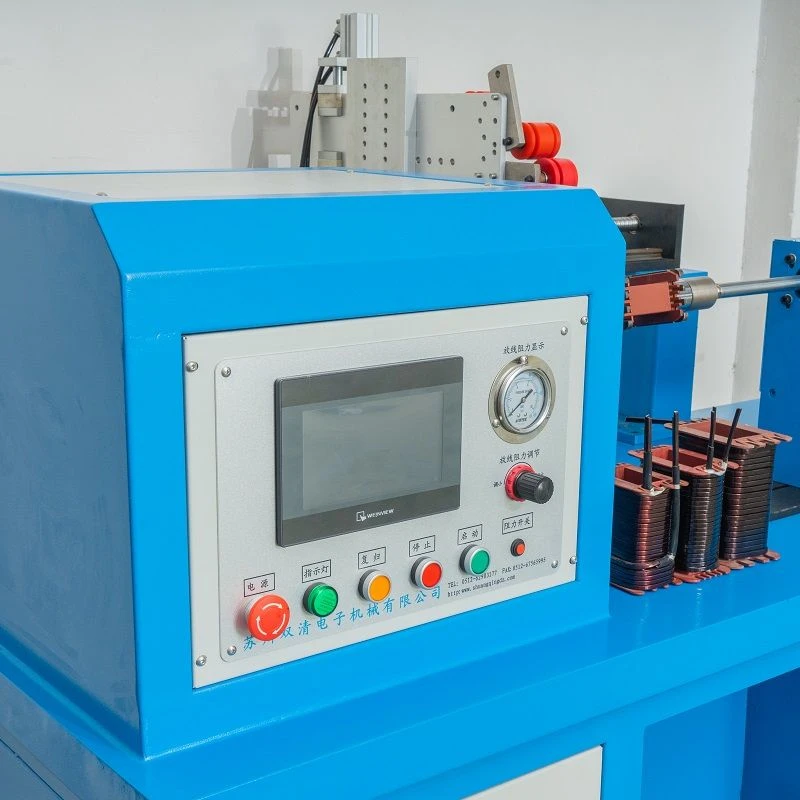

Shuangqing SQ-D810L universal tsis siv neeg winding tshuab yog ib qho cuab yeej tshwj xeeb uas siv rau winding ntau qhov ntau thiab tsawg ntawm cov xov hlau, cov xov hlau tiaj tus, thiab cov khoom coil. Hauv qab no yog ib qho kev taw qhia rau nws:
Structure thiab Cheebtsam

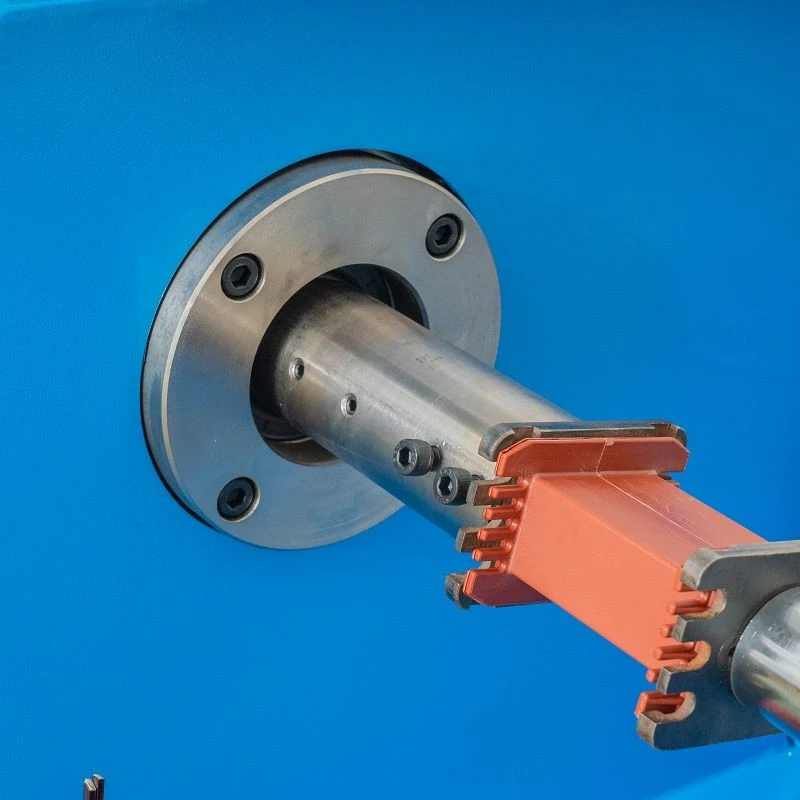

1: Winding spindle:
Nws yog lub hauv paus tseem ceeb ntawm winding thiab yog siv los kho lub winding thav duab los yog cov tub ntxhais ntawm lub reactor. Nws feem ntau yog tsav los ntawm lub cev muaj zog, thiab qhov ceev tuaj yeem tswj tau raws li qhov xav tau ntawm winding ceev ntawm cov reactors sib txawv. Piv txwv li, rau cov reactors loj, qhov qis dua yuav tsum tau ua kom lub zog winding zoo; rau cov reactors me, qhov ceev tuaj yeem tsim nyog nce ntxiv kom ua tau zoo.

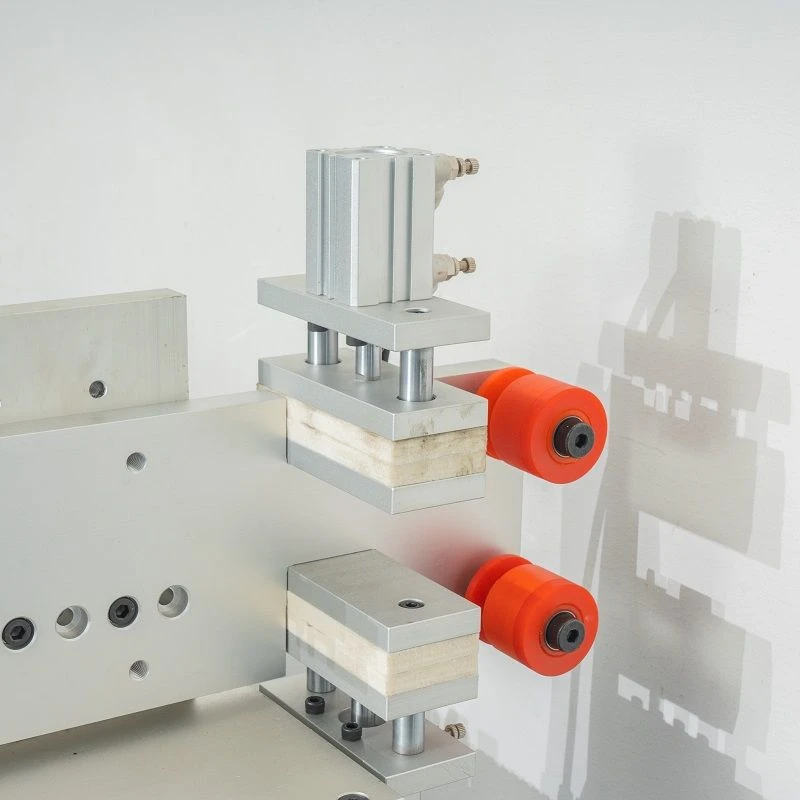

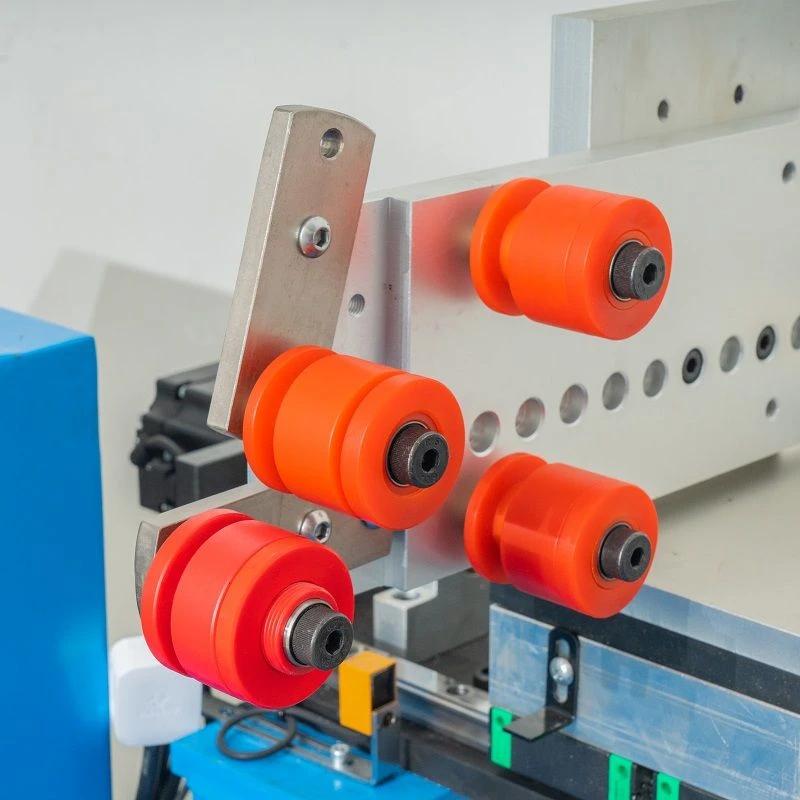

2: Kev teeb tsa cable:
Nws yog lub luag haujlwm rau kev teeb tsa cov xov hlau sib npaug ntawm lub voj voog lossis cov tub ntxhais nyob rau hauv ib qho kev txiav txim siab. Nws ua tiav cov txheej txheem xaim los ntawm cov khoom siv sib kis tau zoo xws li cov ntsia hlau thiab cov lus qhia, thiab lwm yam, hauv kev sib koom ua ke nrog kev sib hloov ntawm winding spindle. Lub suab, kev taw qhia thiab lwm yam tsis zoo ntawm cov xaim xaim tuaj yeem hloov kho raws li tus qauv tsim ntawm lub reactor.
3: Tension tswj qhov system:
Lub kaw lus tswj cov hlau nro kom ntseeg tau tias cov hlau nro nyob ruaj khov thaum lub sij hawm winding txheej txheem. Nws yog tsim los ntawm kev hloov kho qhov nro. Qhov nro ruaj khov tuaj yeem ua rau lub qhov txhab coils nruj thiab zoo huv si, thiab cov hlau yog xoob thiab txoj kab uas hla ntawm lub pob hlau loj heev. Piv txwv li, qhov nro tuaj yeem tswj tau los ntawm kev kho lub braking quab yuam ntawm qhov kev hloov kho qhov nro ntawm lub reel them nyiaj.

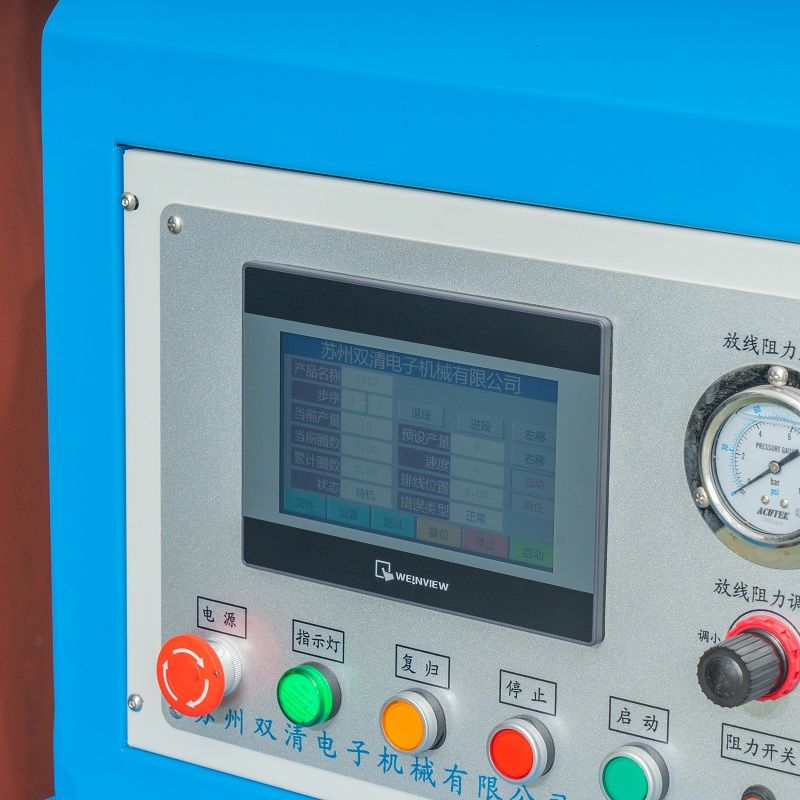

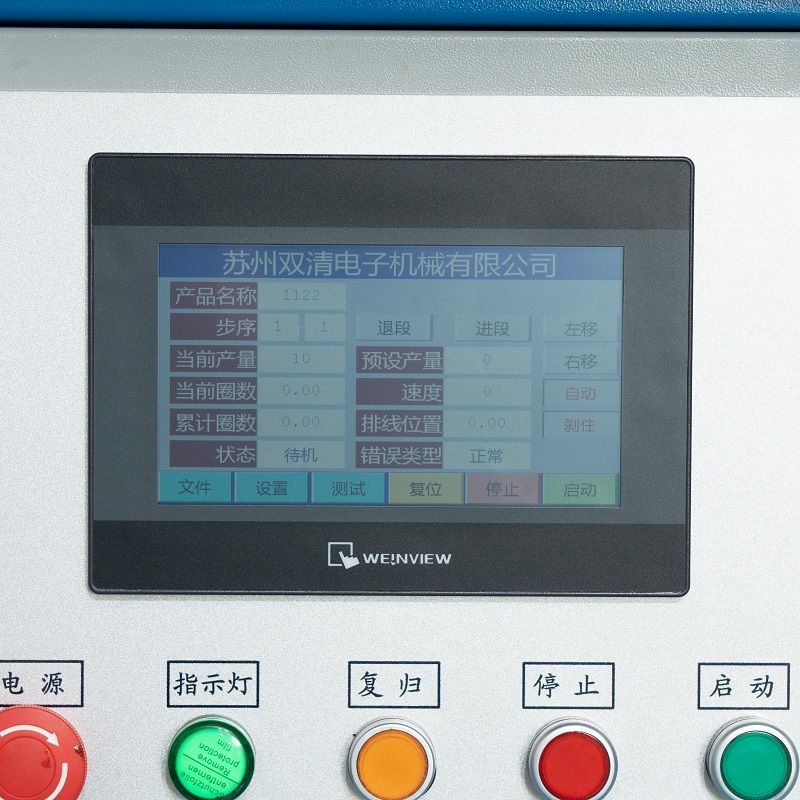

4: Tswj System:
Nws yog "lub hlwb" ntawm lub tshuab reactor winding thiab tuaj yeem paub txog tib neeg-tshuab sib cuam tshuam. Tus neeg teb xov tooj tuaj yeem teeb tsa tus naj npawb ntawm winding lem, xaim kev teeb tsa tsis, tus nqi nro, winding ceev, thiab lwm yam hauv kev tswj hwm. Lub kaw lus tswj kev tswj xyuas kev ua haujlwm ntawm lub winding spindle, xaim txheej txheem thiab kev tswj nruj raws li cov kev txwv no kom ntseeg tau tias qhov tseeb thiab ruaj khov ntawm cov txheej txheem winding.
Khoom Paub meej
FAQ
Q: Dab tsi yog qhov kev saib xyuas txhua hnub ntawm lub tshuab winding suav nrog?
A: Kev saib xyuas txhua hnub feem ntau suav nrog kev tu lub ntsej muag ntawm cov khoom siv kom tsis txhob muaj plua plav thiab cov khib nyiab nkag mus rau hauv cov khoom siv tshuab thiab cuam tshuam rau lawv txoj haujlwm. Nws tseem yuav tsum tsis tu ncua xyuas lub lubrication ntawm kis tau tus mob qhov chaw, xws li iav, screws thiab lwm yam, thiab ntxiv lubricating roj raws li kev siv.
Q: Lub tshuab xaim winding lub xaim reel puas lawm. Kuv puas tuaj yeem hloov nws tus kheej?
A: Yog tias koj muaj qee qhov kev paub txog kev kho tshuab thiab cov cuab yeej, thiab muaj cov khoom siv cable reel uas ua tau raws li cov khoom siv tshwj xeeb, koj tuaj yeem hloov koj tus kheej. Txawm li cas los xij, ua ntej hloov nws, nws yog qhov zoo tshaj plaws los xyuas cov khoom siv phau ntawv qhia kom nkag siab txog cov kev hloov pauv tshwj xeeb thiab ceev faj. Yog tias koj tsis paub meej, nws raug nquahu kom hu rau cov chaw tsim khoom lossis cov neeg ua haujlwm tu.
