Main technical parameters ntawm precision coil winding tshuab |
|||
|
Yam khoom qauv |
SQ-120L |
SQ-121L |
SQ-122L (Tsis siv neeg taug qab) |
|
Txoj kab uas hla |
Ntau dua lossis sib npaug200 |
Ntau dua lossis sib npaug200 |
Ntau dua lossis sib npaug200 |
|
Kab Dav |
Ntau dua lossis sib npaug140 |
Ntau dua lossis sib npaug140 |
Ntau dua lossis sib npaug140 |
|

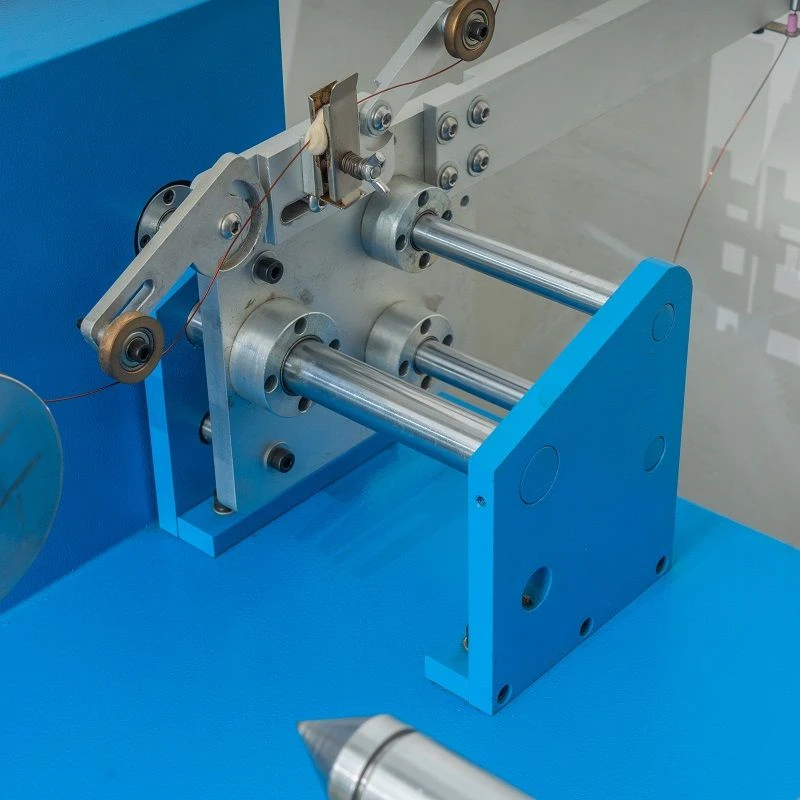

Cable Arrangement raug |
0.01 |
0.01 |
0.01 |
|
Spindle Ceev |
1-1400 |
1-2500rpm |
1-2500rpm |
|
Spindle Center |
180 hli |
180 hli |
180 hli |
|
Siv tau Wire Diameter |
0 02-2mm |
0 02-2mm |
0 02-2mm |
|
Cable Tsav |
Servo 0.4KW |
Servo 0.4KW |
Servo 0.4KW |
|
Spindle Tsav |
zaus conversion 0.75KW |
Servo 0.75KW |
Servo 0.75KW |
|
Cov khoom siv hluav taws xob |
220VAC 50HZ |
220VAC 50HZ |
220VAC 50HZ |
|
Tshuab fais fab |
1.5 KW TSI |
1.5 KW TSI |
1.5 KW TSI |
|
Sib Nqus |

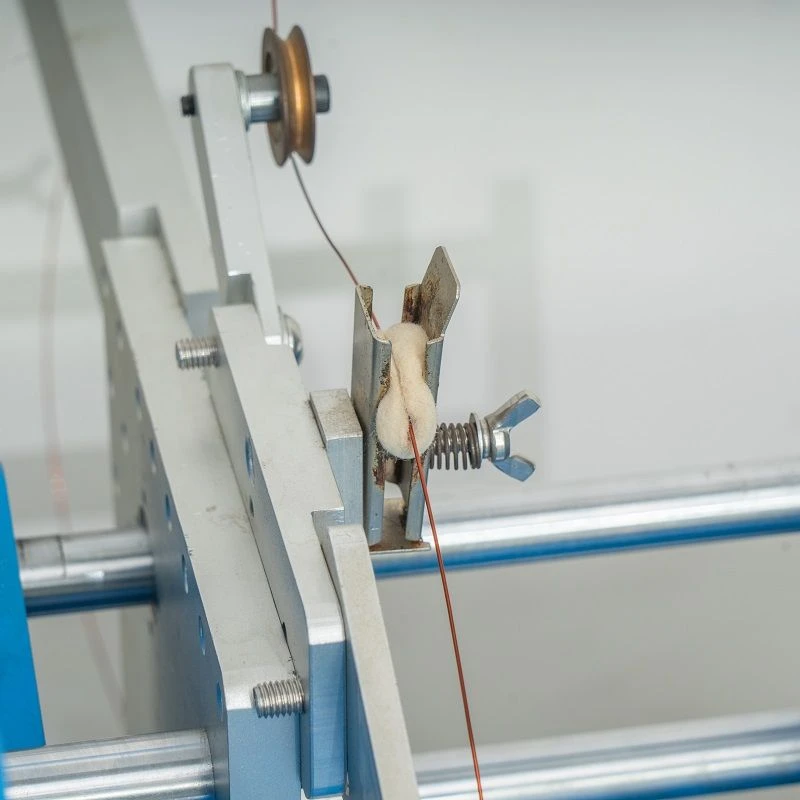

Magnetic resistance mechanical tensioner |
Magnetic resistance mechanical tensioner |
Servo precision tensioner |
|
Qhov ntev |
1300mm (L) * 800 hli (W) * 900mm (H) |
1300mm (L) * 800 hli (W) * 900mm (H) |
1300mm (L) * 800 hli (W) * 900mm (H) |
|
Khoom hnyav |
140 KG |
140 KG |
140 KG |

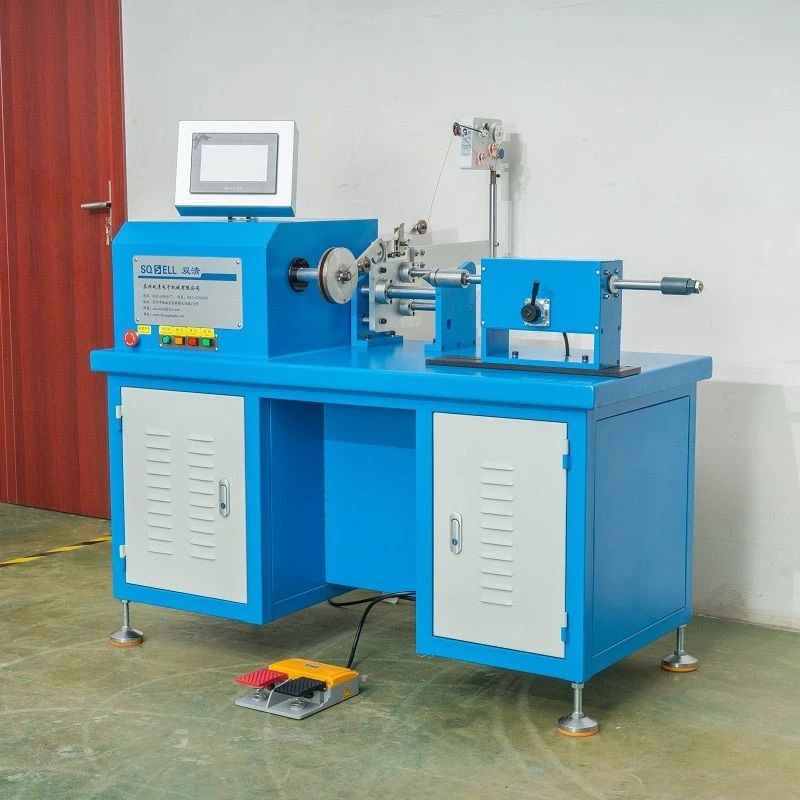

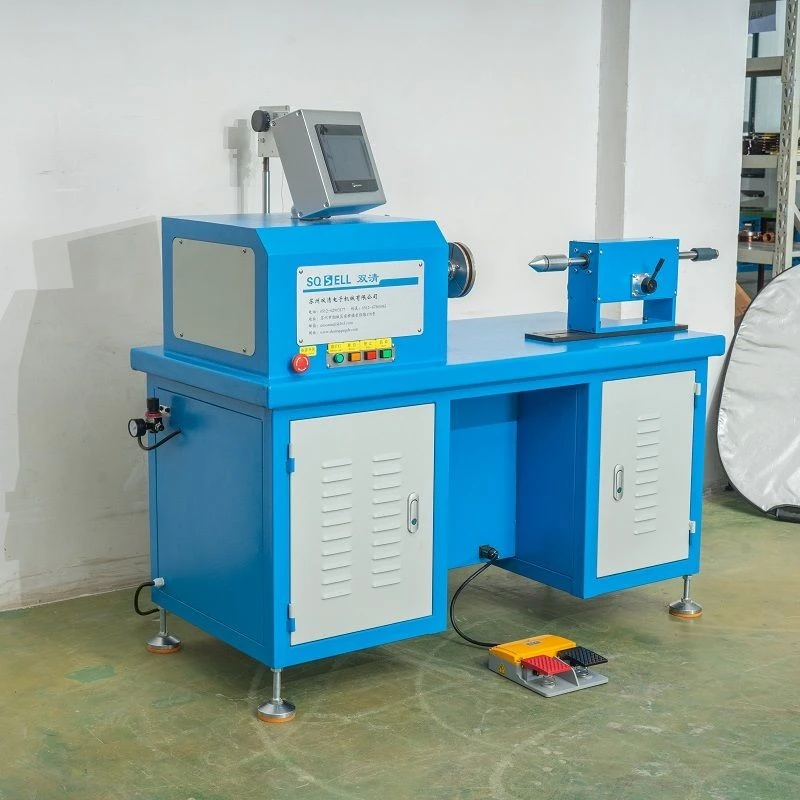

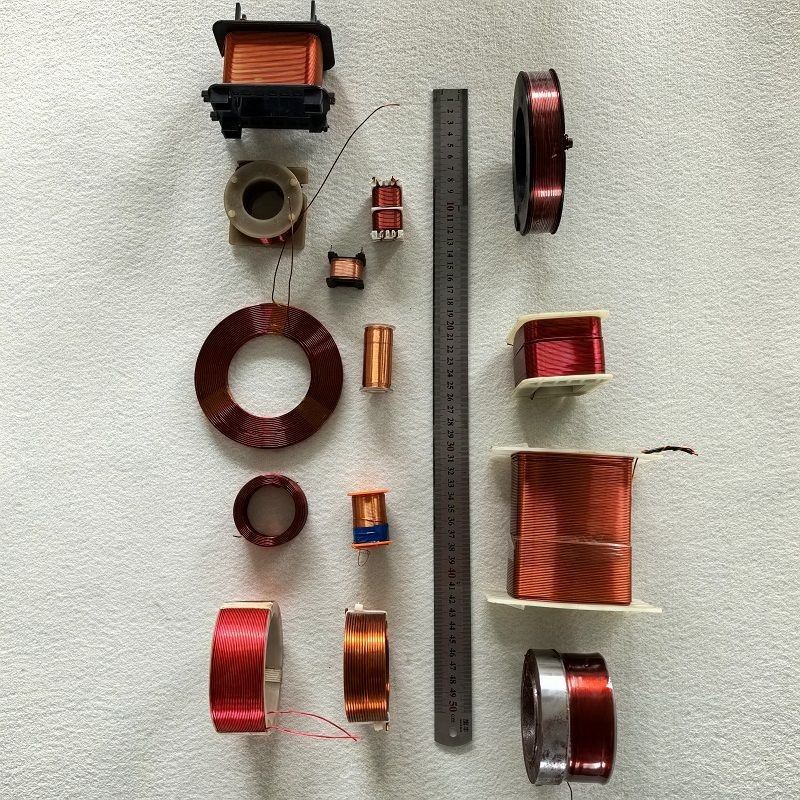

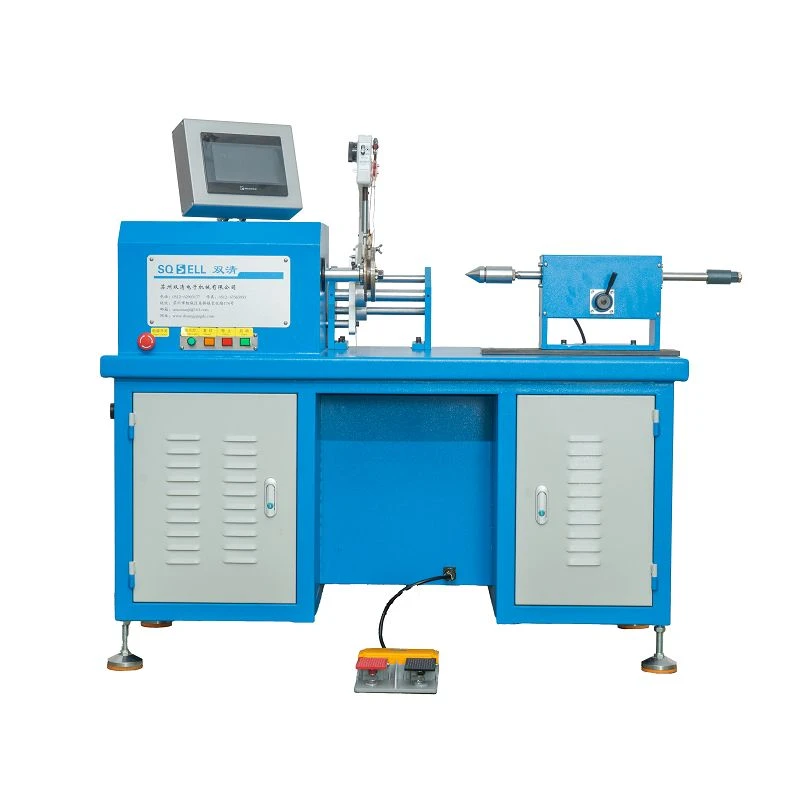

SQ-120C precision coil winding tshuab yog tus kheej tsim los ntawm Suzhou Shuangqing Electronic Machinery Co., Ltd. Nws yog dav siv nyob rau hauv ntau lub teb xws li electronics, hluav taws xob coils, automotive precision coils, aerospace coils, sensors, thiab lwm yam. Cov nram qab no yog cov ncauj lus kom ntxaws qhia txog nws:
1: High precision thaiv:
Nws tuaj yeem ua tiav qhov kev txiav txim siab zoo ntawm cov xaim xaim, tuaj yeem taug qab txoj haujlwm sib npaug ntawm cov xaim thiab cov kauj, xyuas kom meej qhov tseeb ntawm cov kauj vab thiab lwm yam tsis zoo, thiab yog li txhim kho qhov kev ua tau zoo thiab zoo ntawm cov kauj. Piv txwv li, inductor coil thiab transformer coil nyob rau hauv cov khoom siv hluav taws xob muaj cov kev xav tau siab heev rau kev teeb tsa cov hlau, thiab lub tshuab precision coil winding tuaj yeem ua tau raws li cov cai no.
2: High efficiency ntau lawm:
Nws muaj qib siab ntawm automation thiab tuaj yeem ua kom tiav coil winding sai thiab tsis tu ncua, txhim kho kev ua haujlwm ntau lawm. Rau qhov loj-ntim coil ntau lawm, precision coil winding tshuab tuaj yeem txo cov nqi tsim khoom thiab txhim kho kev sib tw ntawm kev lag luam.
3: Kev siv ntau yam:
Nws tuaj yeem siv rau ntau hom thiab cov kev qhia tshwj xeeb ntawm cov xov hlau, nrog rau cov khoom ua haujlwm ntawm cov duab sib txawv thiab ntau thiab tsawg, thiab muaj zog versatility thiab yooj. Txawm hais tias nws yog ib txoj kab uas hla nyias enameled hlau los yog tuab hlau txoj kab uas hla, nws tuaj yeem raug mob ntawm qhov precision coil winding tshuab.
4: Yooj yim rau kev khiav lag luam:

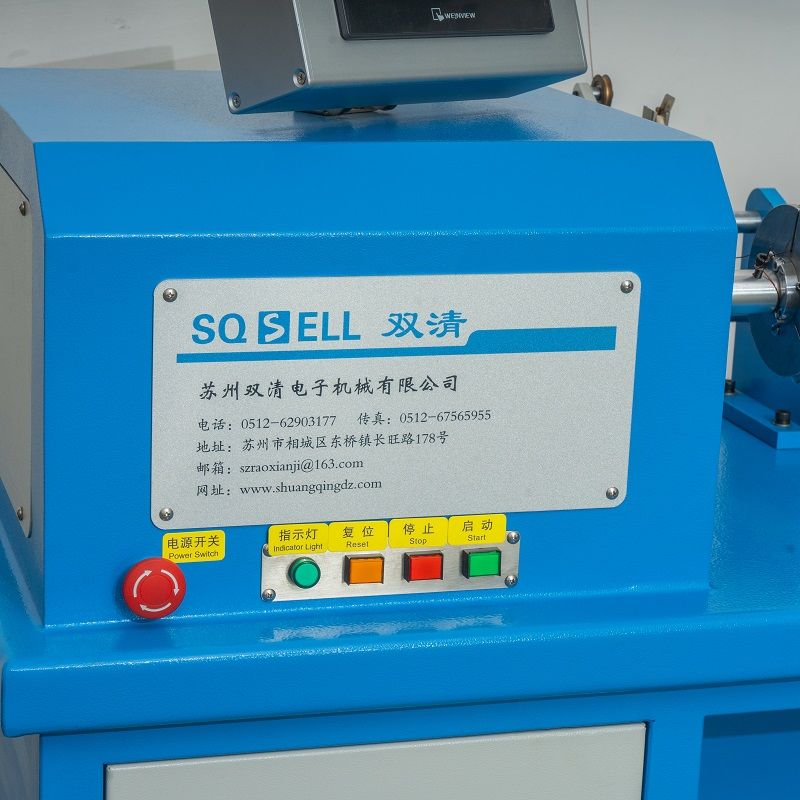

SQ-120C precision coil winding tshuab yog nruab nrog Suav thiab Askiv tib neeg-tshuab interface. Cov neeg ua haujlwm tsuas yog xav tau kev cob qhia yooj yim los khiav lub tshuab kom txawj ntse. Nyob rau tib lub sijhawm, kev saib xyuas thiab tu ntawm lub tshuab kuj yog qhov yooj yim, uas txo cov nqi siv thiab tu cov lag luam.
Khoom Paub meej
FAQ
Q: Koj puas tuaj yeem tsim nws rau peb?
A: Cov khoom siv tuaj yeem hloov kho raws li koj xav tau thiab cov khoom xav tau.
Q: Yog tias peb muaj lwm yam khoom yuav tsum tau ua uas koj nplooj ntawv tsis suav nrog, koj puas tuaj yeem pab muab rau lawv?
A: Cov khoom siv tuaj yeem kho raws li cov neeg siv khoom xav tau.
Q: Cov khoom siv hluav taws xob yog dab tsi?
A: Peb cov khoom siv tau tsim nrog AC220V thiab 380V, thiab tuaj yeem hloov kho raws li cov neeg siv khoom xav tau.
Q: Puas tuaj yeem hloov kho qhov ceev ntawm lub tshuab winding?
A: Lub winding ceev ntawm lub tshuab winding tuaj yeem hloov kho. Los ntawm kev tswj vaj huam sib luag ntawm cov cuab yeej, qhov tsim nyog winding ceev tuaj yeem hloov kho raws li qhov sib txawv winding yuav tsum tau, xws li txoj kab uas hla, xov tooj ntawm lub kauj thiab lwm yam.
