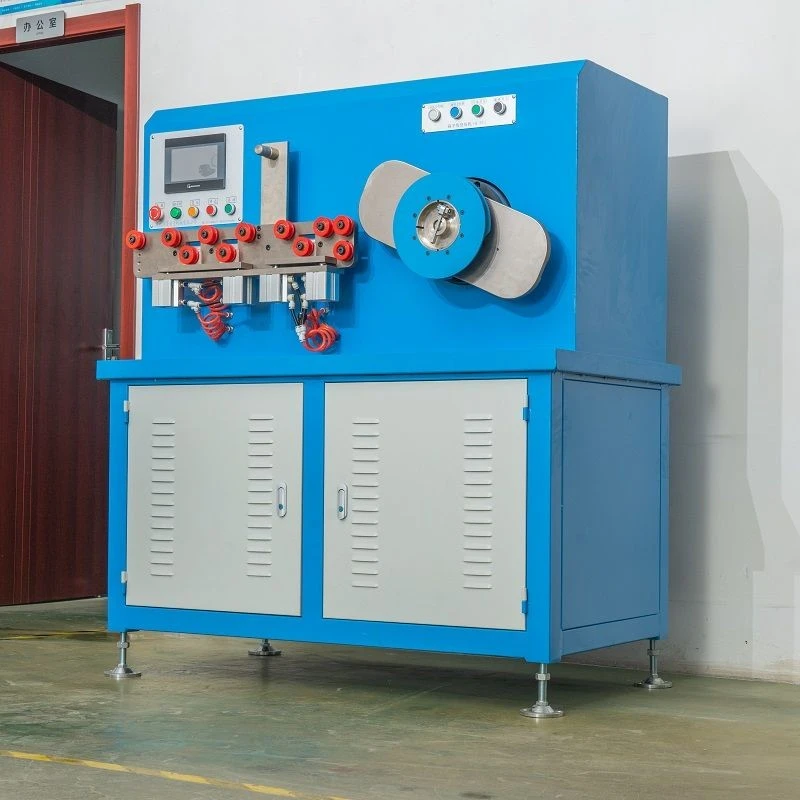

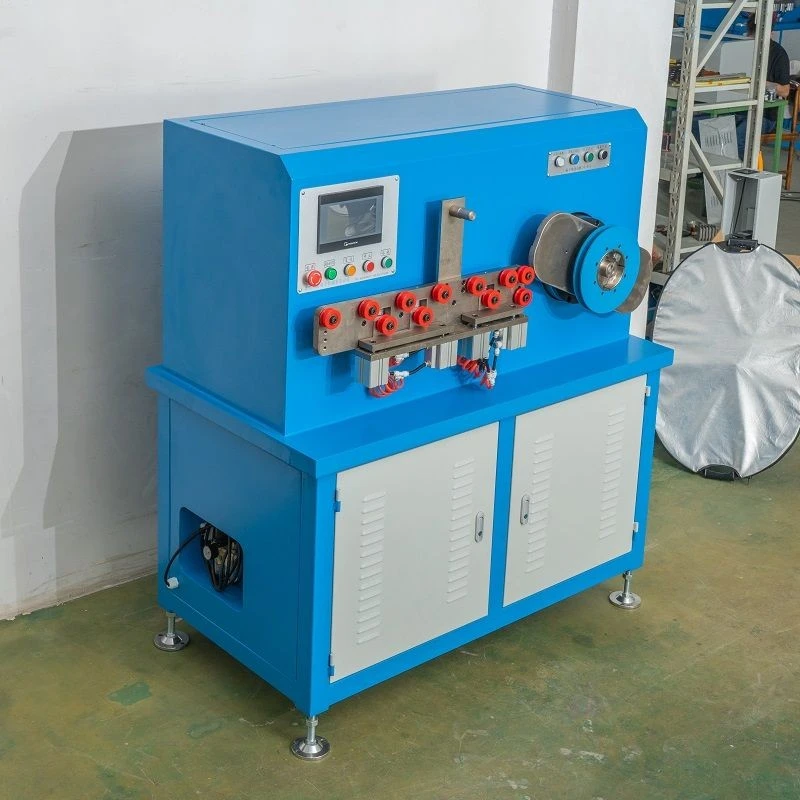

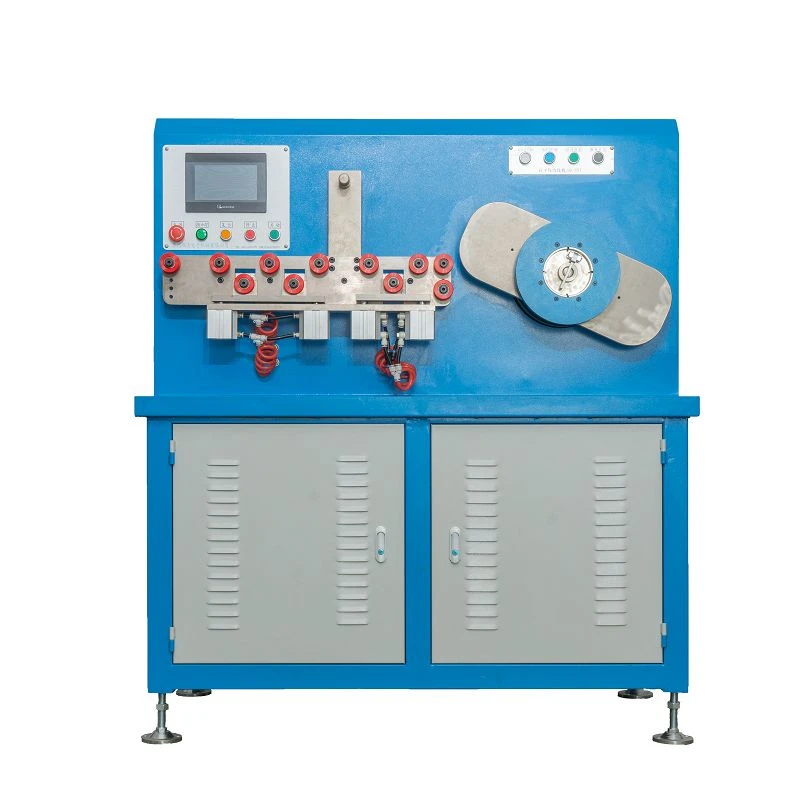

Main technical parameters ntawm Flat Hlau Winding Tshuab |
|||
|
Yam khoom qauv |
SQ-8BX1-2 |
SQ-8BX1-3 |
SQ-8BX1-4 |
|
Txoj kab uas hla |
Ntau dua lossis sib npaug400 |
Ntau dua lossis sib npaug400 |
Ntau dua lossis sib npaug550 |
|
Cable dav |
Ntau dua lossis sib npaug200 |
Ntau dua lossis sib npaug200 |
Ntau dua lossis sib npaug200 |
|
Cable kev cai raug |
0.01 |
0.01 |
0.01 |
|
Spindle ceev |
1-200rpm |
1-200rpm |
1-200rpm |
|
Spindle center qhov siab |
300 hli |
300 hli |
300 hli |
|
Siv tau txoj kab uas hla |
Flat tooj liab hlau: thickness 1-5 hli dav 1-15mm |
Flat tooj liab hlau: thickness 1-5 hli dav 1-20mm |
Flat tooj liab hlau: thickness 1-5 hli dav 1-30mm |
|
Cable lub cev muaj zog |
Servo 0.75KW |
Servo 0.75KW |
Servo 0.75KW |
|
Spindle lub cev muaj zog |
Kev hloov pauv zaus 2.2KW+1:10 |
Kev hloov pauv zaus 2.2KW+1:15 |
zaus conversion 3.7KW+1:10 |
|
Muab hluav taws xob |
220VAC 50HZ |
220VAC 50HZ |
380VAC 50HZ |
|
Tshuab fais fab |
3.3 KW TSI |
3.6 KW TSI |
5.5 KW TSI |
|
Txhawb nqa hlau khib |
Adjustable ib axis |
Adjustable ib axis |
Adjustable ib axis |
|
Qhov ntev |
1400 X 800 X 1550 mm |
1400 X 8001550mm |
1600 X 850 m X 1600 mm |
|
Khoom hnyav |
460 KG |
490 KG |
6 70KG |
Cov qauv thiab lub hauv paus ntsiab lus

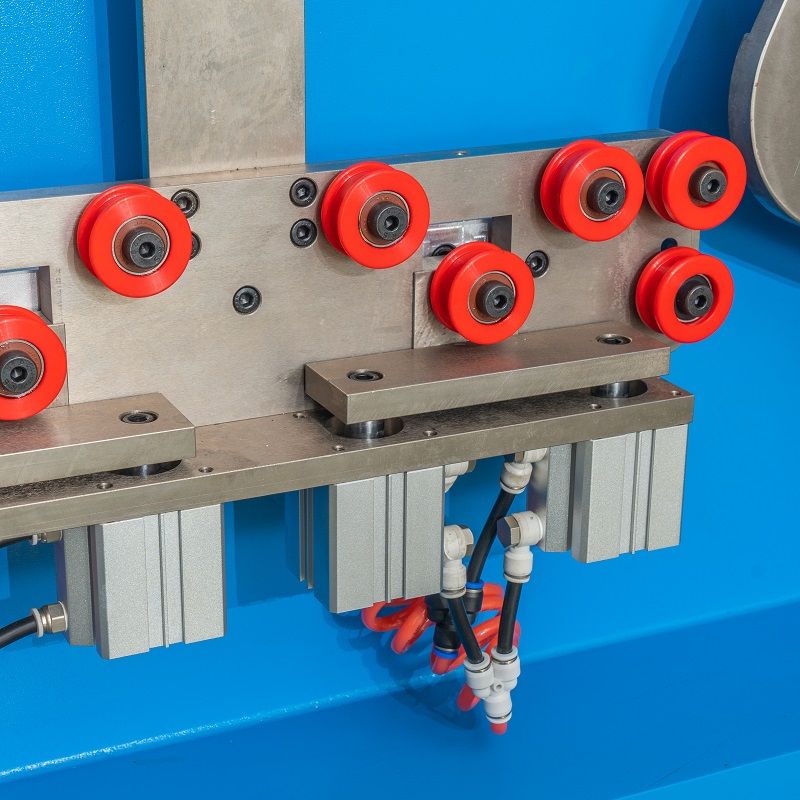

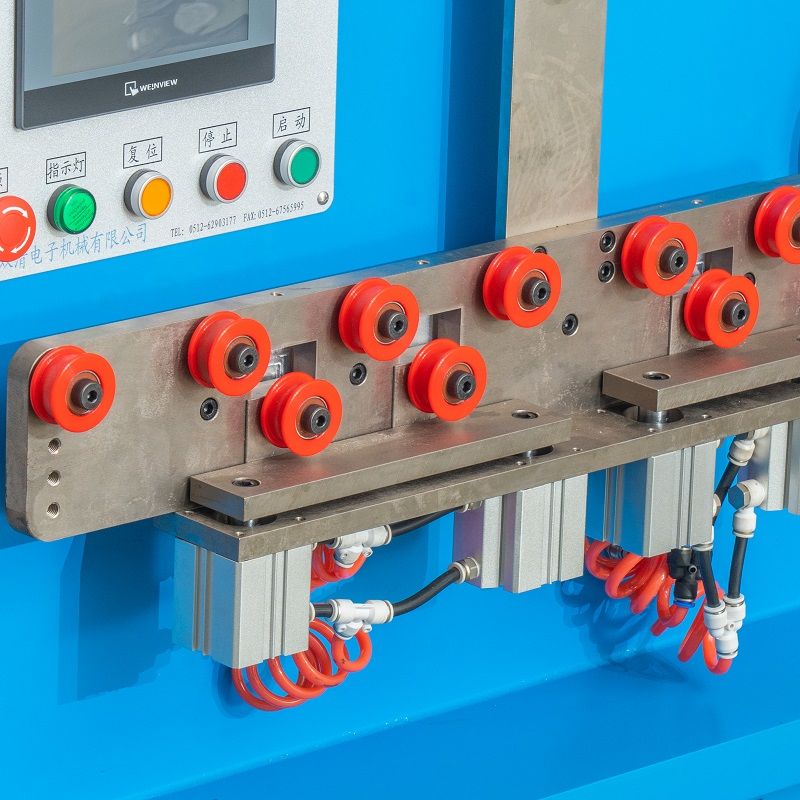

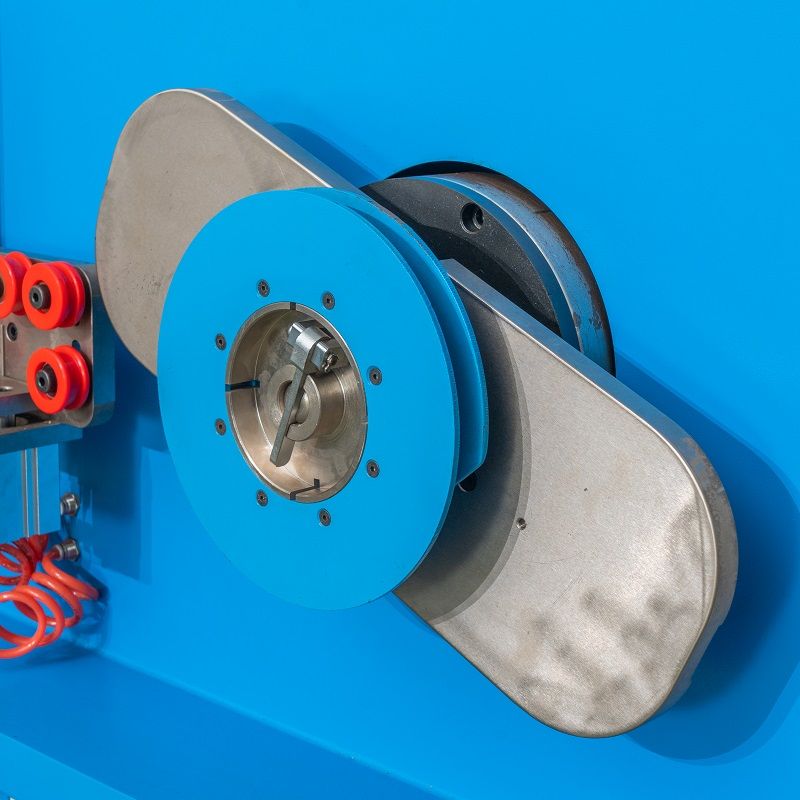

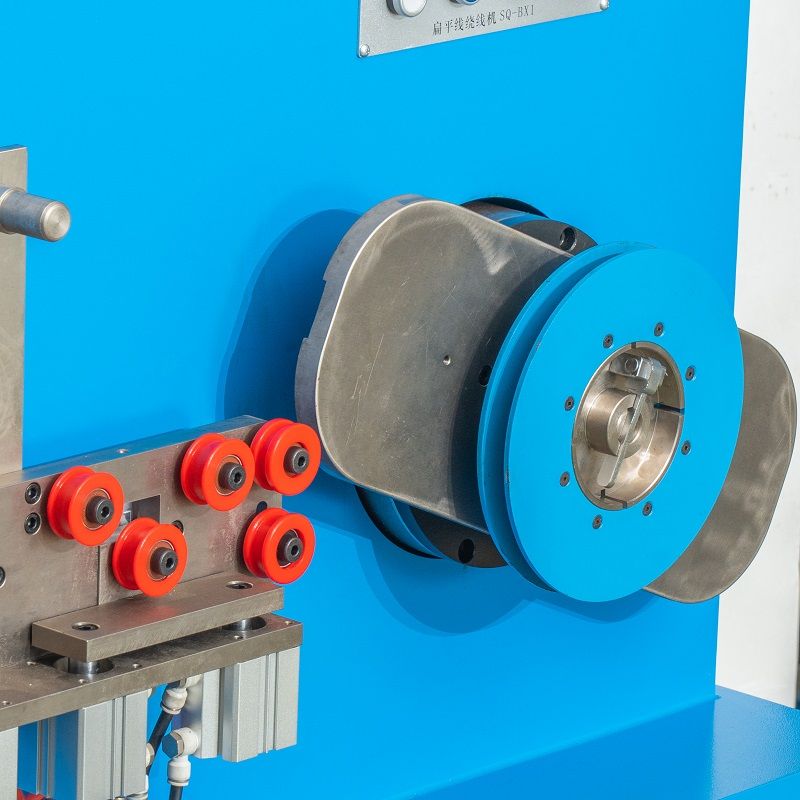

Nws feem ntau muaj cov khoom tseem ceeb xws li winding spindle, xaim kev teeb tsa mechanism, nro tswj cov cuab yeej, thiab lwm yam. Thaum ua haujlwm, cov hlau yog khaws cia ntawm ib qho kev nro los ntawm kev tswj qhov nro, lub spindle tsav lub winding pwm tig, thiab cov xaim xaim. mechanism ua rau cov hlau sib npaug ntawm cov pwm los ua ib qho pancake-shaped coil.
Khoom Paub meej
Cov cheeb tsam thov

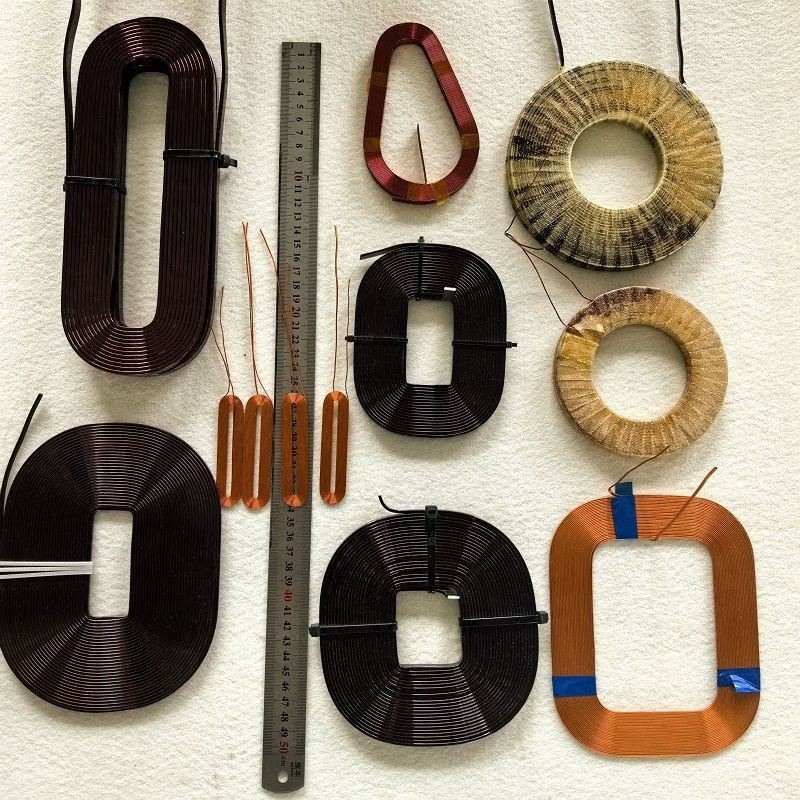

Nws yog dav siv nyob rau hauv kev tsim cov khoom siv hluav taws xob xws li fais fab transformers, vuam tshuab coils, alpha ca coils, reactors, thiab lwm yam. Piv txwv li, lub high-voltage winding thiab low-voltage winding manufacturing ntawm loj fais fab transformers yuav tsum tau siv cov pancake. winding tshuab rau cua coils nrog meej lem thiab duab los xyuas kom meej stability ntawm transformer kev ua tau zoo.
Nta thiab qhov zoo
Nws tuaj yeem ua tiav high-precision winding, kom ntseeg tau tias muaj pes tsawg tus lem ntawm lub kauj yog qhov tseeb, nruj nruj thiab zoo ib yam. Thiab cov winding tsis xws li hlau txoj kab uas hla, tus naj npawb ntawm lem, winding ceev, thiab lwm yam tuaj yeem hloov kho raws li kev tsim qauv sib txawv. Qee lub tshuab pancake siab heev kuj muaj cov yam ntxwv ntawm qib siab ntawm automation, uas tuaj yeem txo qis kev ua haujlwm tsis raug thiab txhim kho kev tsim khoom.
FAQ
Q: Koj puas yog cov chaw tsim khoom lossis lub tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom, chaw tsim khoom.
Q: Koj puas tuaj yeem tsim nws rau peb?
A: Cov khoom siv tuaj yeem hloov kho raws li koj xav tau thiab cov khoom xav tau.
Q: Lub ntim thiab xa khoom zoo li cas?
A: Thaum shipping, ntoo strips yuav siv los txhawb thiab tiv thaiv lub tshuab.
Q: Puas tuaj yeem hloov kho qhov ceev ntawm lub tshuab winding?

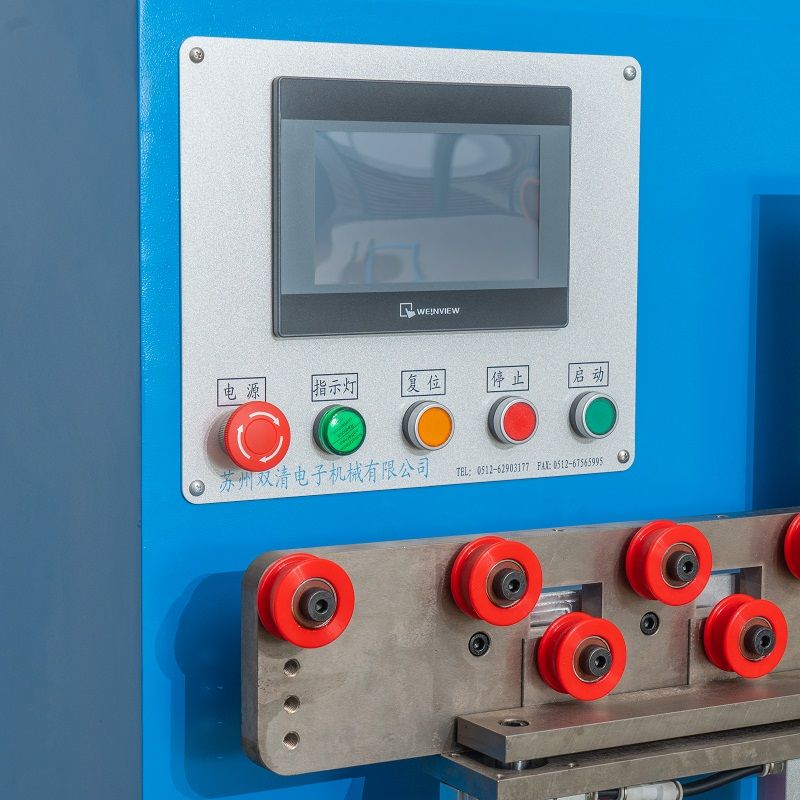

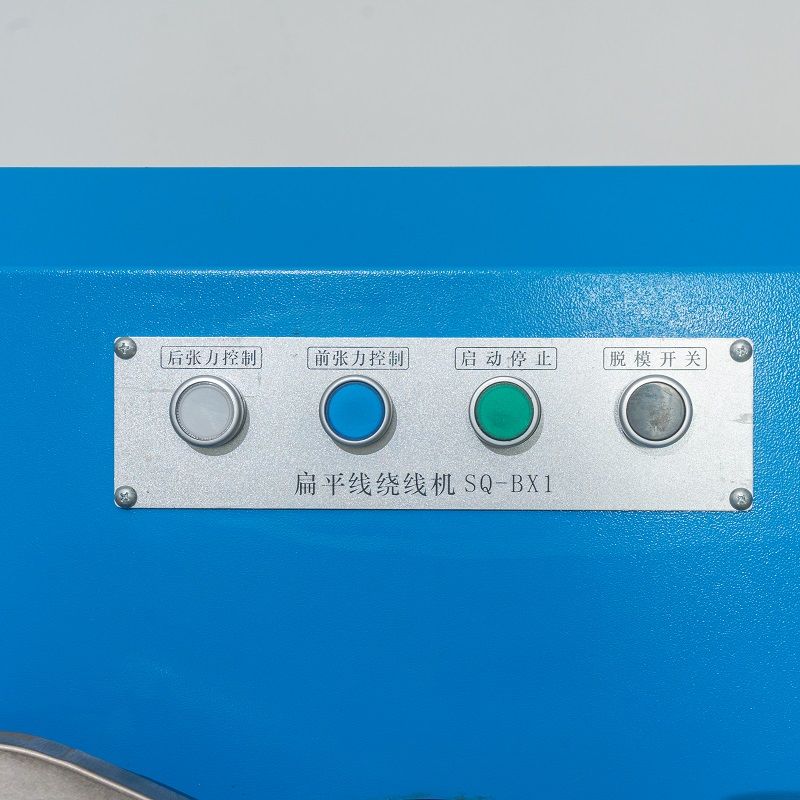

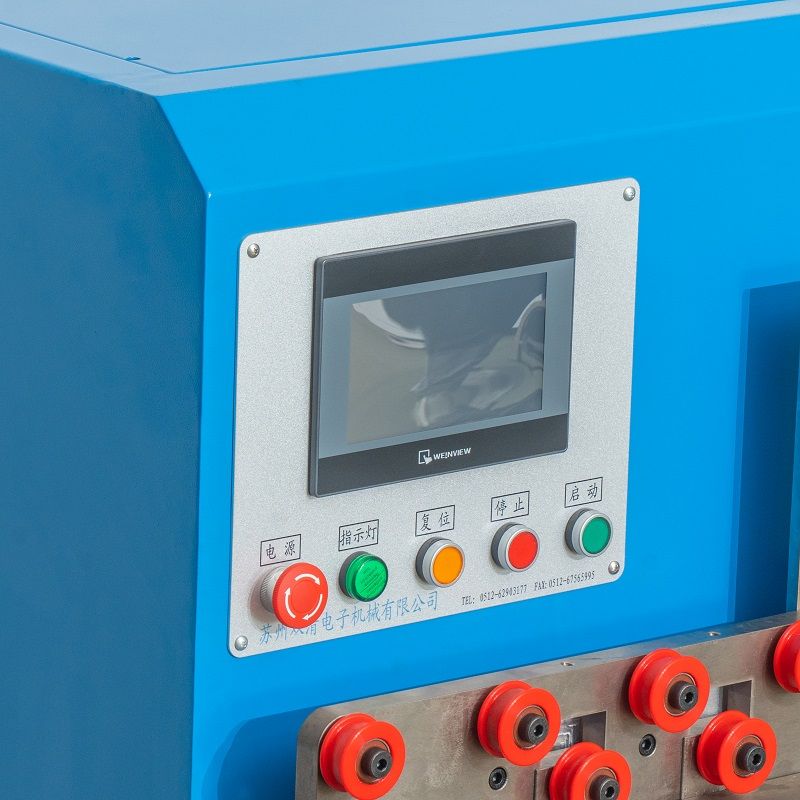

A: Lub winding ceev ntawm lub tshuab winding tuaj yeem hloov kho. Los ntawm kev tswj vaj huam sib luag ntawm cov cuab yeej, qhov tsim nyog winding ceev tuaj yeem hloov kho raws li qhov sib txawv winding yuav tsum tau, xws li txoj kab uas hla, xov tooj ntawm lub kauj thiab lwm yam.
