Main technical parameters ntawm tag nrho automatic tsheb kav hlau txais xov |
||
|
Yam khoom qauv |
SQ-T600L |
SQ-T800J |
|
Kav hlau txais xov Dia |
4mm ib |
4mm ib |
|
Ua Ntev |
200-600 |
200-800 |
|
Cable Arrangement raug |
0.01 |
0.01 |
|
Spindle Ceev |
1-3000rpm |
1-3000rpm |
|
Lub Sijhawm Ua Haujlwm |
10-17 vib nas this ib thooj |
10-17 vib nas this ib thooj |
|
Siv tau Wire Diameter |
Round Hlau 0 02-1.2mm Pav hlau {{0}} 01-5.0mm |
Round Hlau 0 02-1.2mm Pav hlau {{0}} 01-5.0mm |
|
Cable Tsav |
Panasonic Servo 0.4KW |
Panasonic Servo 0.4KW |
|
Spindle Tsav |
Panasonic Servo 0.75KW |
Panasonic Servo 0.75KW |
|
Tswj System |
PLC |
PLC |
|

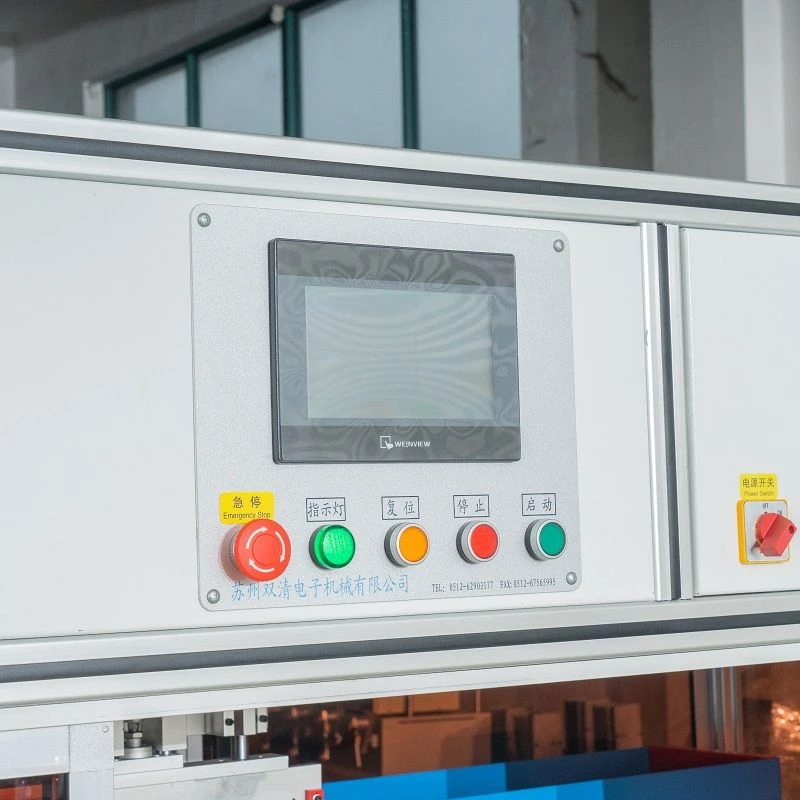

Hom kev ua haujlwm |
Suav thiab Askiv human-machine interface |
Suav thiab Askiv human-machine interface |
|
Cov khoom siv hluav taws xob |
220VAC 50HZ |
220VAC 50HZ |
|
Tshuab fais fab |
1.5 KW TSI |
1.5 KW TSI |
|
Sib Nqus |
Magnetic resistance mechanical tensioner |
Magnetic resistance mechanical tensioner |
|
Mechanism |
Electronic active pay-off |
Electronic active pay-off |
|
Qhov ntev |
1900mm (L) * 1200 hli (W) * 1850mm (H) |
2100 hli (L) * 1200 hli (W) * 1850 hli (H) |
|
Khoom hnyav |
6 40 KG |
9 60kg |

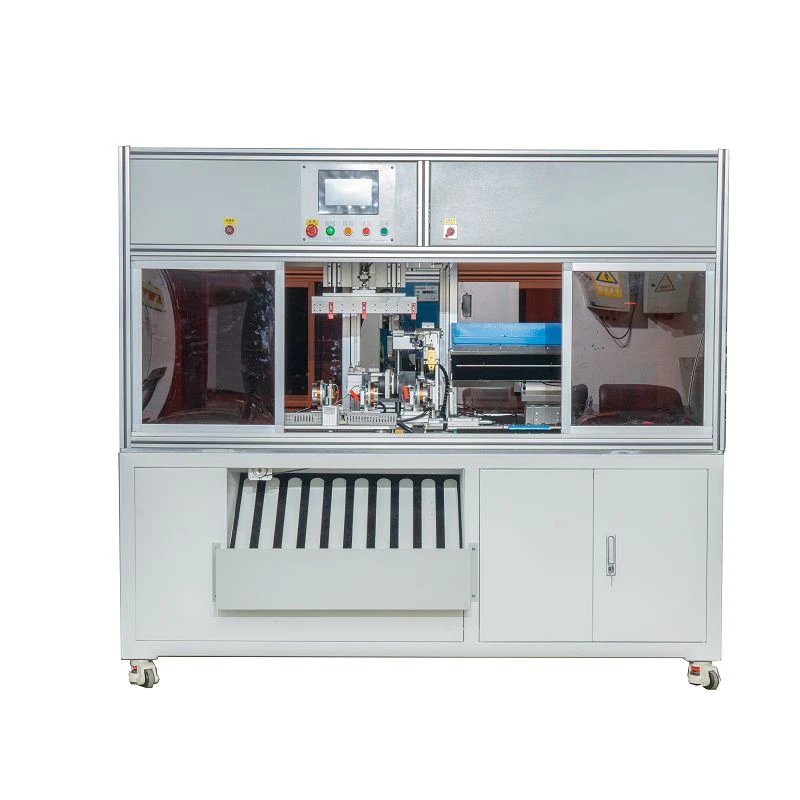

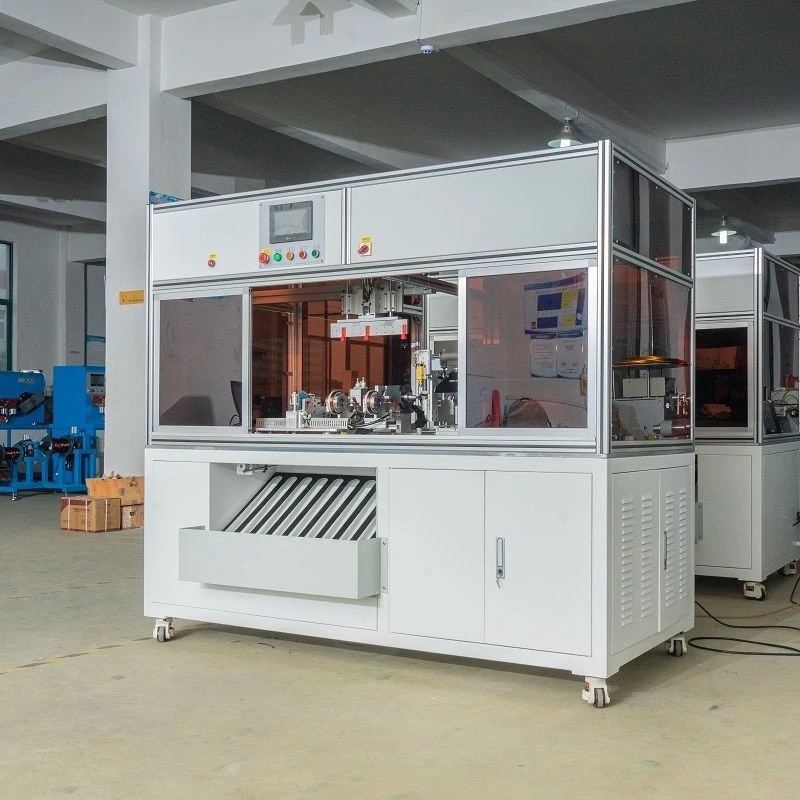

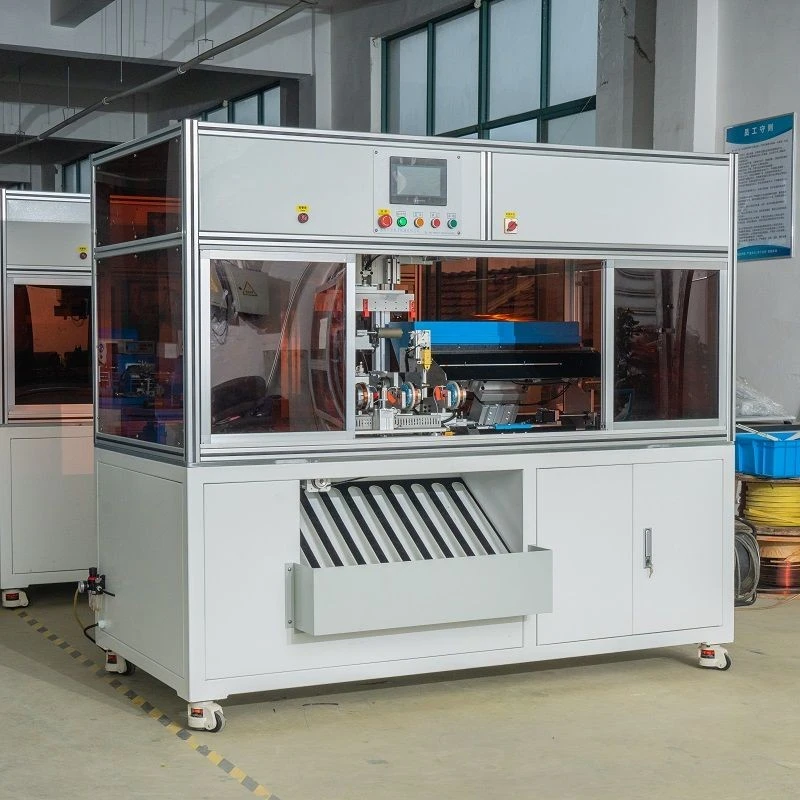

Shuangqing tag nrho tsis siv neeg lub tsheb kav hlau txais xov winding tshuab yog ib qho khoom siv tsis siv neeg tshwj xeeb siv rau kev tsim tsheb kav hlau txais xov coils. Hauv qab no yog ib qho kev taw qhia rau nws:
Cov yam ntxwv zoo

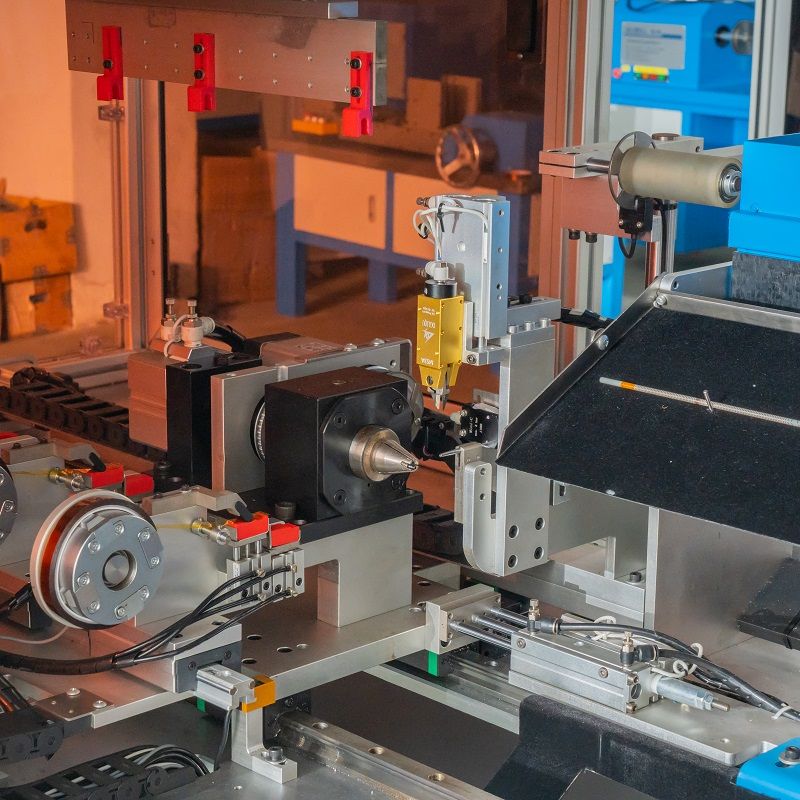

1: Winding spindle:
Lub high-precision servo lub cev muaj zog yog siv los muab cov kev hloov pauv loj rau kev ua haujlwm winding. Nws qhov ceev thiab lub zog tuaj yeem hloov kho raws li qhov xav tau ntawm winding kom hloov mus rau cov xov hlau ntawm cov thicknesses sib txawv thiab cov ntaub ntawv.
2: Cov khoom siv them nyiaj:
Nws yog siv los tso thiab stably tso cov hlau siv rau kav hlau txais xov winding. Nws yog txawm peem rau nrog ib tug nruj tswj mechanism los xyuas kom meej tias cov hlau yuav cia li unwound raws li lub winding ceev thaum lub sij hawm winding txheej txheem thiab tswj kom tsim nyog nro tiv thaiv cov hlau tsis dhau xoob los yog nruj heev.

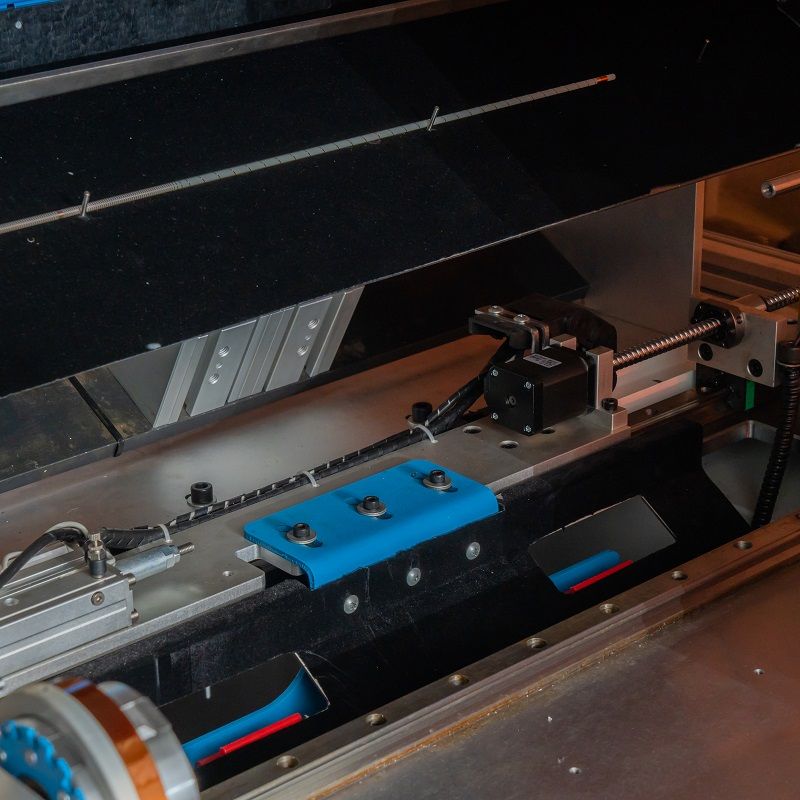

3: Kev teeb tsa cable:
Lub Panasonic servo lub cev muaj zog yog siv los tswj cov txheej txheem ntawm cov xaim ntawm lub winding ncej los yog ncej kom ua tau raws li qhov sib txawv thiab kev sib tw winding, kom tus lej ntawm cov kav hlau txais xov coil ua tau raws li cov qauv tsim.
4: Qhov System:
Nws tuaj yeem tau txais thiab ruaj khov kho tus kav hlau txais xov ncej kom ntseeg tau tias yuav tsis muaj kev hloov pauv lossis hloov pauv thaum lub caij winding, yog li ua kom qhov tseeb ntawm cov xaim.
Khoom Paub meej
Txoj Cai Ua Haujlwm

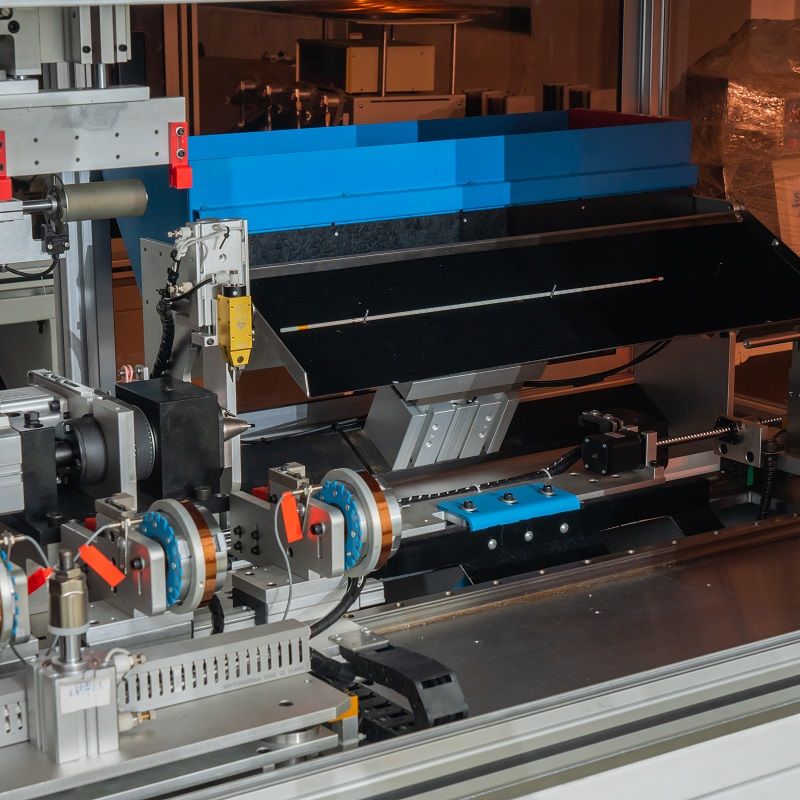

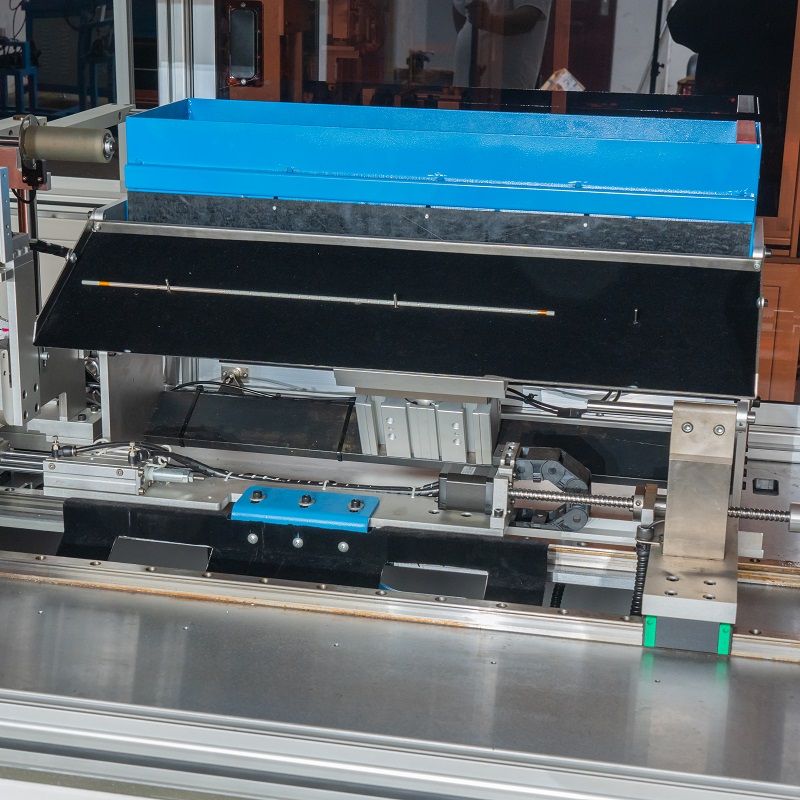

Cov txheej txheem them nyiaj tso tawm cov xaim, uas yog coj los ntawm cov txheej txheem xaim thiab tsav los ntawm kev sib hloov ntawm lub winding spindle. Cov hlau yog qhov txhab ntawm tus kav hlau txais xov pas nrig tsau rau ntawm qhov system fixture raws li preset winding hom (xws li kauv suab). Lub kaw lus tswj yuav raug tswj xyuas qhov kev sib koom ua haujlwm ntawm txhua qhov khoom raws li cov txheej txheem, xws li tus lej winding, txoj kab uas hla, winding ceev, thiab lwm yam.
Muaj nuj nqi thiab qhov zoo
1: Txhim kho ntau lawm efficiency
2: Xyuas kom winding zoo
3: Adapts rau ntau hom kav hlau txais xov
Daim ntawv thov teb

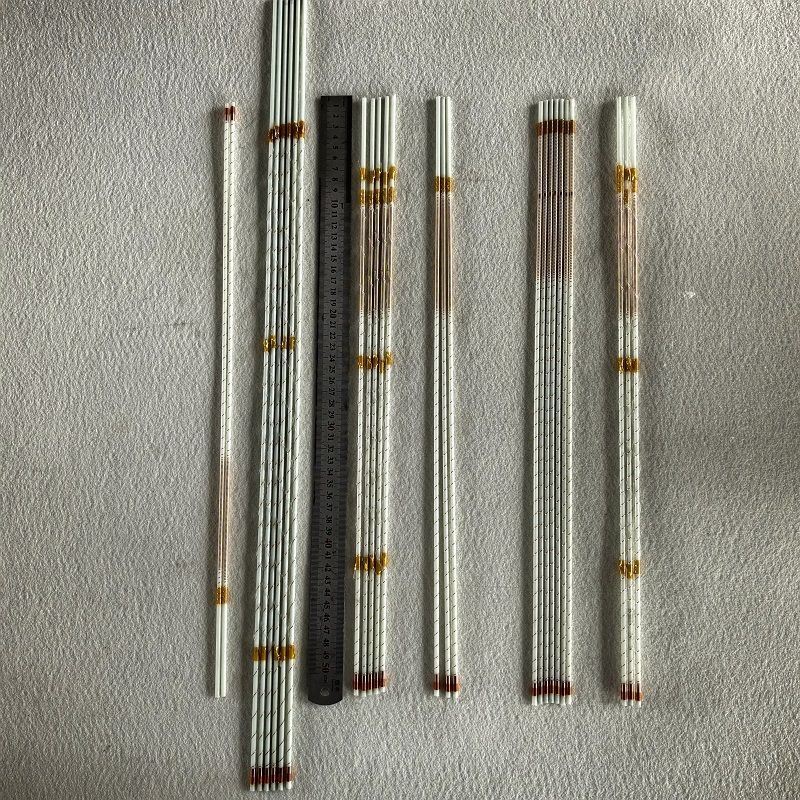

Nws yog tsuas yog siv nyob rau hauv automotive qhov chaw tsim kev lag luam, tshwj xeeb tshaj yog nyob rau hauv automotive kav hlau txais xov manufacturers. Nyob rau hauv cov txheej txheem ntau lawm, txawm nws yog ib tug built-in kav hlau txais xov los yog ib tug sab nraud kav hlau txais xov, tsuav yog nws muaj xws li coil winding, yuav tsum tau ib tug automotive kav hlau txais xov winding tshuab los xyuas kom meej lub stability thiab kev cia siab ntawm lub kav hlau txais xov tau txais thiab xa cov teeb liab.
FAQ
Q: Lub sij hawm xa khoom ntawm cov khoom yog dab tsi?
A: Tus qauv khoom xa tuaj lub sijhawm yog 15 hnub, cov khoom siv tsis raug cai yog 30 hnub.
Q: Cov khoom siv hluav taws xob yog dab tsi?
A: Peb cov khoom siv tau tsim nrog AC220V thiab 380V, thiab tuaj yeem hloov kho raws li cov neeg siv khoom xav tau.
Q: Dab tsi ntawm txoj kab uas hla ntawm lub cuab yeej tuaj yeem ua cua?
A: Nws nyob ntawm koj cov khoom. Thov tso koj cov ntaub ntawv tiv tauj thiab peb yuav npaj cov neeg siv khoom los tiv tauj koj.
Q: Kuv yuav tsum xyuam xim rau dab tsi thaum pib lub tshuab winding?
A: Ua ntej pib lub tshuab, xyuas seb cov hlua hluav taws xob ntawm cov khoom puas tau txuas nrog zoo thiab seb txhua yam khoom puas nyob hauv qhov qub. Tsis tas li xyuas kom tsis txhob muaj cov khib nyiab hauv qhov chaw ua haujlwm kom tsis txhob cuam tshuam rau kev ua haujlwm ntawm cov cuab yeej siv lossis ua rau muaj kev nyab xeeb.
