Main technical parameters ntawm reactor winding tshuab |
|||
|
Yam khoom qauv |
SQ-D811L |
SQ-D811LC |
SQ-D811 LE |
|
Txoj kab uas hla |
20-500 hli |
20-500 hli |
20-500 hli |
|
Kab Dav |
0-400 hli |
0-400 hli |
0-400 hli |
|
Cable Arrangement raug |
0.01 |
0.01 |
0.01 |
|
Spindle Ceev |
1-280rpm |
1-280rpm |
1-280rpm |
|
Spindle Center Qhov siab |
300 hli |
300 hli |
300 hli |
|
Siv tau Wire Diameter |
Round hlau: 1-3mm 2 strips Pav ca hlau: 2.5X15mm 2 strips |
Round hlau: 1-3mm 2 strips Pav ca hlau: 2.5X15mm 2 strips |
Round hlau: 1-3mm 2 strips Pav ca hlau: 2.5X15mm 2 strips |
|
Cable Tsav |
Servo 0.75KW |
Servo 0.75KW |
Servo 0.75KW |
|
Spindle Tsav |
Kev hloov pauv zaus 2.2KW 1 * 10 |
Kev hloov pauv zaus 2.2KW 1 * 10 |
Kev hloov pauv zaus 2.2KW 1 * 10 |
|
Cov khoom siv hluav taws xob |
220VAC 50HZ |
220VAC 50HZ |
220VAC 50HZ |
|
Tshuab fais fab |
2.7 KW TSI |
2.7 KW TSI |
2.7 KW TSI |
|
Khoom siv yas |
tsis muaj |
Pneumatically adjustable |
Pneumatically adjustable |
|

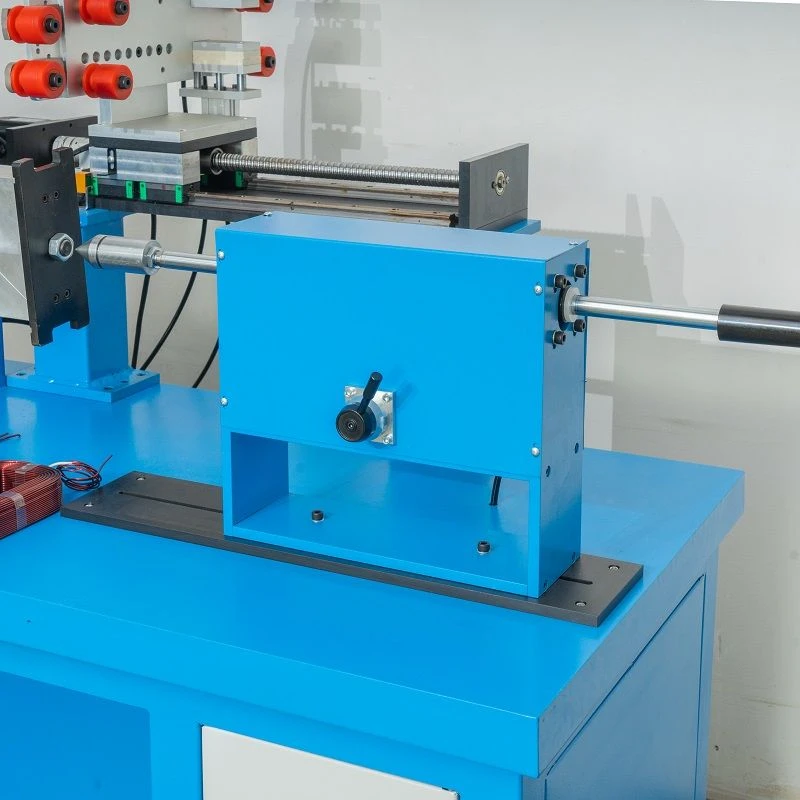

Tailstock |
tsis muaj |
Pneumatically adjustable |
Pneumatically adjustable |
|
Txhawb Hlau Rack |
Ib axis, dual axis, plaub axis |
Ib axis, dual axis, plaub axis |
Ib axis, dual axis, plaub axis |
|
Sib Nqus |
Pneumatically adjustable |
Pneumatically adjustable |
Magnetic Powder Electronic Tensioner |
|
Qhov ntev |
1700mm (L) * 1000 hli (W) * 1500mm (H) |
1700mm (L) * 1000 hli (W) * 1500mm (H) |
1700mm (L) * 1000 hli (W) * 1500mm (H) |
|
Khoom hnyav |
140 KG |
140 KG |
140 KG |
Structure thiab Cheebtsam

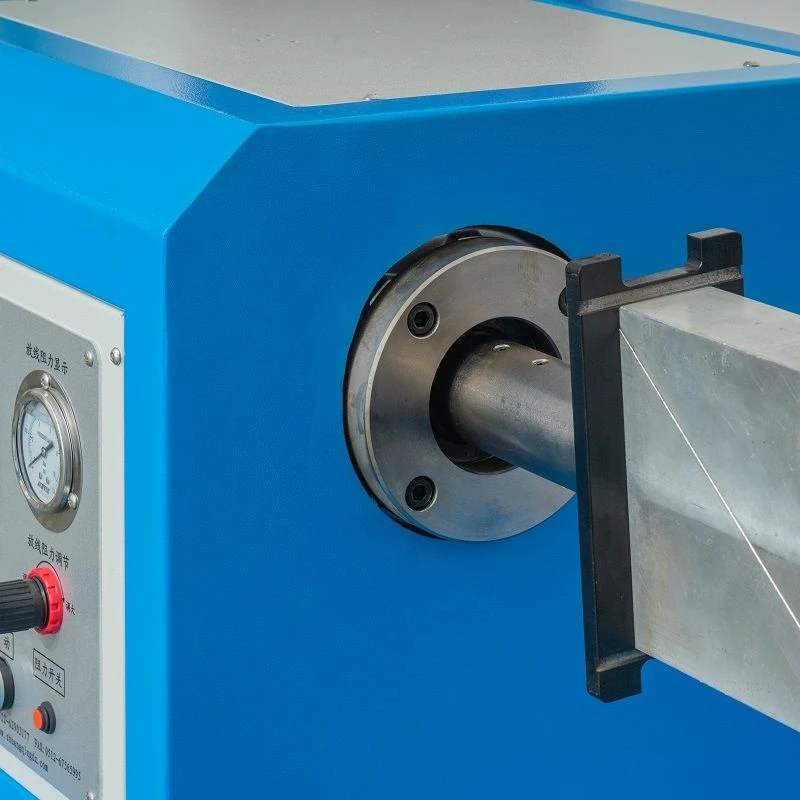

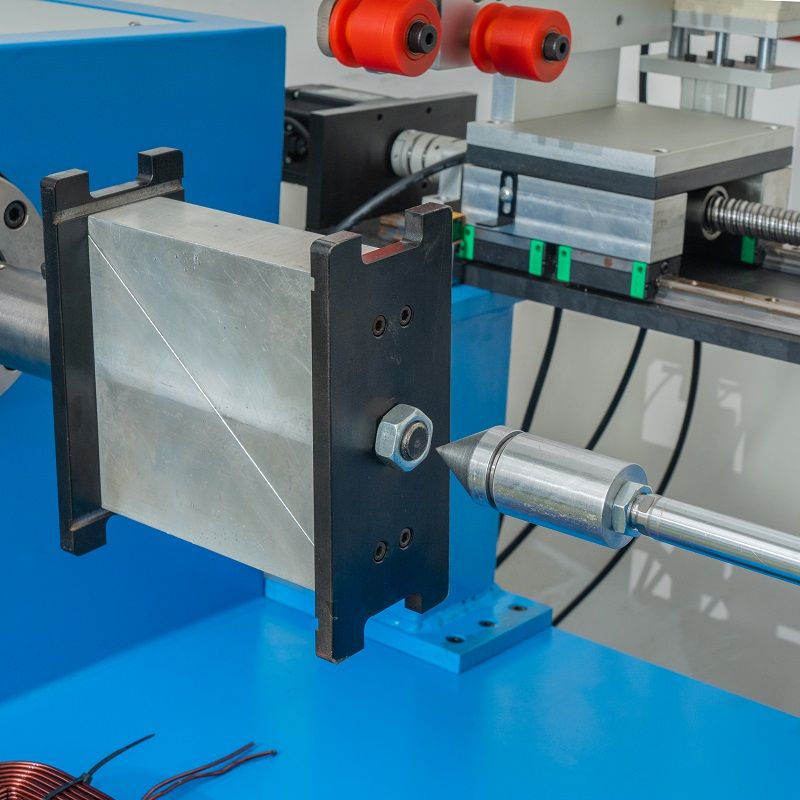

Winding spindle:
Nws yog lub hauv paus tseem ceeb ntawm winding thiab yog siv los kho lub winding thav duab los yog cov tub ntxhais ntawm lub reactor. Nws feem ntau yog tsav los ntawm lub cev muaj zog, thiab qhov ceev tuaj yeem tswj tau raws li qhov xav tau ntawm winding ceev ntawm cov reactors sib txawv. Piv txwv li, rau cov reactors loj, qhov qis dua yuav tsum tau ua kom lub zog winding zoo; rau cov reactors me, qhov ceev tuaj yeem tsim nyog nce ntxiv kom ua tau zoo.

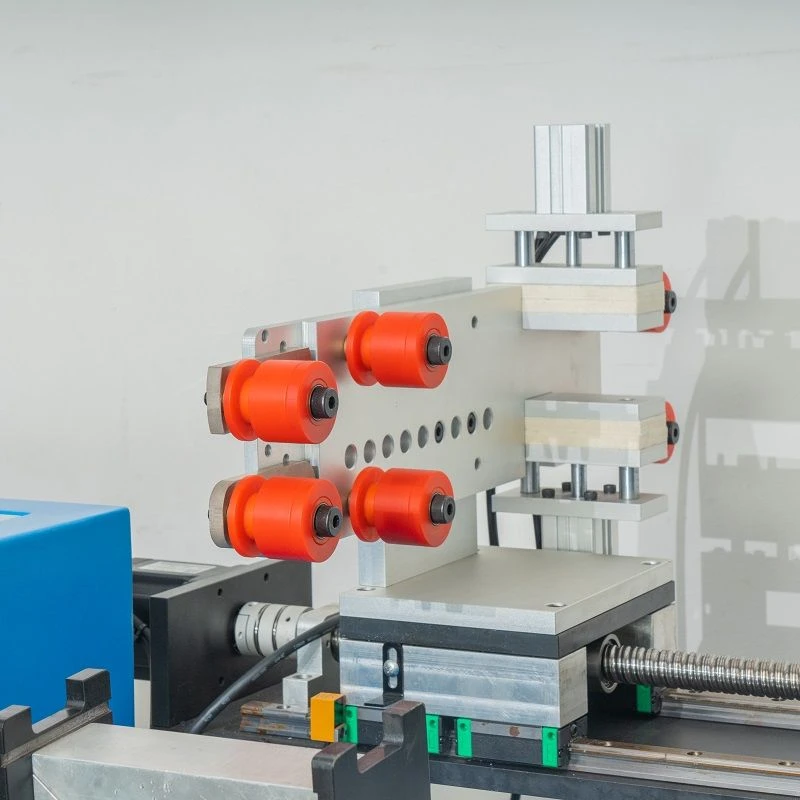

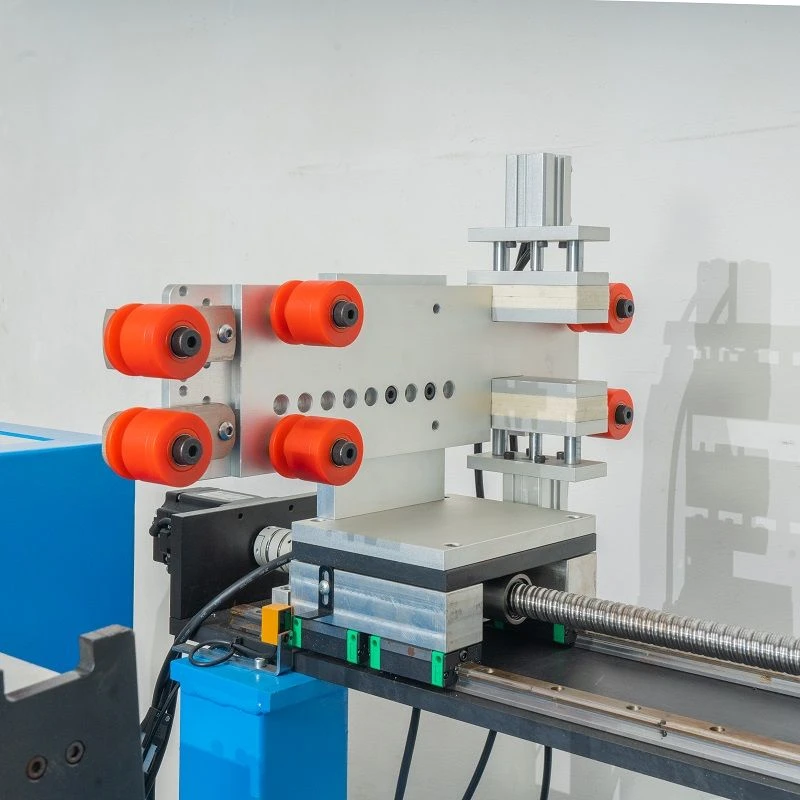

Cable kev npaj:
Nws yog lub luag haujlwm rau kev teeb tsa cov xov hlau sib npaug ntawm lub voj voog lossis cov tub ntxhais nyob rau hauv ib qho kev txiav txim siab. Nws ua tiav cov txheej txheem xaim los ntawm cov khoom siv sib kis tau zoo xws li cov ntsia hlau thiab cov lus qhia, thiab lwm yam, hauv kev sib koom ua ke nrog kev sib hloov ntawm winding spindle. Lub suab, kev taw qhia thiab lwm yam tsis zoo ntawm cov xaim xaim tuaj yeem hloov kho raws li tus qauv tsim ntawm lub reactor.
Tension tswj system:
Lub kaw lus tswj cov hlau nro kom ntseeg tau tias cov hlau nro nyob ruaj khov thaum lub sij hawm winding txheej txheem. Nws yog tsim los ntawm kev hloov kho qhov nro. Qhov nro ruaj khov tuaj yeem ua rau lub qhov txhab coils nruj thiab zoo huv si, thiab cov hlau yog xoob thiab txoj kab uas hla ntawm lub pob hlau loj heev. Piv txwv li, qhov nro tuaj yeem tswj tau los ntawm kev kho lub braking quab yuam ntawm qhov kev hloov kho qhov nro ntawm lub reel them nyiaj.

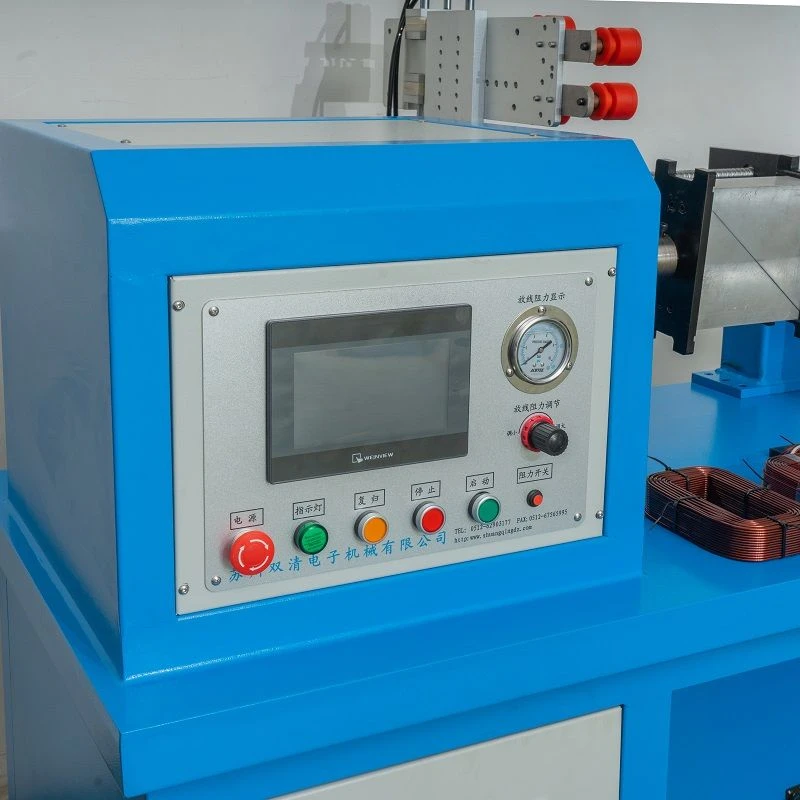

Tswj System
Nws yog "lub hlwb" ntawm lub tshuab reactor winding thiab tuaj yeem paub txog tib neeg-tshuab sib cuam tshuam. Tus neeg teb xov tooj tuaj yeem teeb tsa tus naj npawb ntawm winding lem, xaim kev teeb tsa tsis, tus nqi nro, winding ceev, thiab lwm yam hauv kev tswj hwm. Lub kaw lus tswj kev tswj xyuas kev ua haujlwm ntawm lub winding spindle, xaim txheej txheem thiab kev tswj nruj raws li cov kev txwv no kom ntseeg tau tias qhov tseeb thiab ruaj khov ntawm cov txheej txheem winding.
Khoom Paub meej
Nta thiab Qhov Zoo
1: Ua kom zoo winding:
Lub winding tsis tuaj yeem raug tswj xyuas kom meej tias muaj pes tsawg tus lem, kev teeb tsa, lub zog ntawm cov hlau, thiab lwm yam ntawm cov coil ua tau raws li cov qauv tsim ntawm lub reactor, yog li txhim kho cov hluav taws xob kev ua tau zoo thiab kev ruaj ntseg ntawm lub reactor.
2: Txhim kho ntau lawm efficiency:
Kev ua haujlwm tsis siv neeg txo lub sijhawm thiab kev ua yuam kev ntawm phau ntawv winding. Lub tshuab tsis siv neeg winding tuaj yeem cua coils sai thiab tsis tu ncua, muaj cov kev cai qis rau cov neeg ua haujlwm, thiab ua tau raws li qhov xav tau ntawm ntau lawm.
3: Zoo customizable:
Los ntawm kev kho qhov tsis zoo ntawm kev tswj hwm thiab hloov qee cov khoom siv, nws tuaj yeem hloov kho raws li qhov xav tau winding ntawm reactors ntawm txawv specifications thiab hom, thiab muaj versatility zoo.
FAQ
Q: Lub sij hawm xa khoom ntawm cov khoom yog dab tsi?
A: Tus qauv khoom xa tuaj lub sijhawm yog 15 hnub, cov khoom siv tsis raug cai yog 30 hnub.
Q: Cov khoom siv hluav taws xob yog dab tsi?
A: Peb cov khoom siv tau tsim nrog AC220V thiab 380V, thiab tuaj yeem hloov kho raws li cov neeg siv khoom xav tau.
Q: Koj puas tuaj yeem tsim nws rau peb?
A: Cov khoom siv tuaj yeem hloov kho raws li koj xav tau thiab cov khoom xav tau.
Q: Puas tuaj yeem hloov kho qhov ceev ntawm lub tshuab winding?
A: Lub winding ceev ntawm lub tshuab winding tuaj yeem hloov kho. Los ntawm kev tswj vaj huam sib luag ntawm cov cuab yeej, qhov tsim nyog winding ceev tuaj yeem hloov kho raws li qhov sib txawv winding yuav tsum tau, xws li txoj kab uas hla, xov tooj ntawm lub kauj thiab lwm yam.
Q: Puas yog winding tshuab programming nyuaj?
A: Qhov no nyob ntawm qhov tshwj xeeb winding tshuab qauv. Yooj yim winding tshuab programming yog ib qho yooj yim thiab tuaj yeem ua tiav los ntawm kev teeb tsa ob peb yam yooj yim, xws li tus lej hloov, winding ceev, thiab lwm yam. Txawm li cas los xij, qee lub tshuab winding nyuaj siv rau winding ntau yam ntawm cov coils nyuaj yuav nyuaj rau qhov kev pab cuam. , xav kom cov neeg ua haujlwm paub txog cov lus programming lossis kev khiav haujlwm software los teeb tsa ntau yam tsis xws li txoj kev winding thiab txoj kev xaim.
