Hlau kos tshuab lub ntsiab technical parameters |
||
|
Yam khoom qauv |
SQ-A200C |
SQ-A200L |
|
Txoj kab uas hla ntawm Winding |
Ntau dua lossis sib npaug200 |
Ntau dua lossis sib npaug200 |
|
Hlau dav |
Ntau dua lossis sib npaug140 |
Ntau dua lossis sib npaug140 |
|
Hlau Arrangement raug |
0.01 |
0.01 |
|
Spindle Ceev |
1-1100 |
1-300rpm |
|
Spindle Center Qhov siab |
180 hli |
180 hli |
|
Siv tau Wire Diameter |
Round Hlau 0 02-1.2mm |
Round Hlau: 0 02-1.2mm Square Silk:Tsawg dua los yog sib npaug1.2X 1.2 |
|
Hlau Arrangement Tsav |
Panasonic Servo 0.4KW |
Panasonic Servo 0.4KW |
|
Spindle Tsav |
zaus conversion 0.75KW |
zaus conversion 0.75KW 1*5 |
|

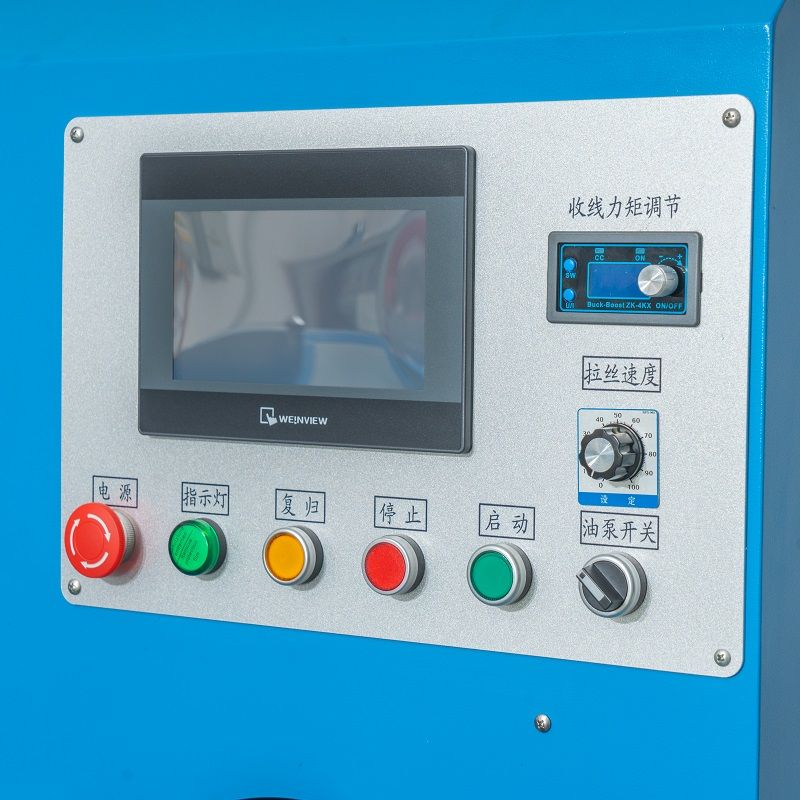

Tswj System |
Shuangqing CNC -200 |
Shuangqing PLC |
|
Hom kev ua haujlwm |
CNC nyees khawm |
Suav thiab Askiv human-machine interface |
|
Cov khoom siv hluav taws xob |
220VAC 50HZ |
220VAC 50HZ |
|
Tshuab fais fab |
1.5 KW TSI |
1.5 KW TSI |
|

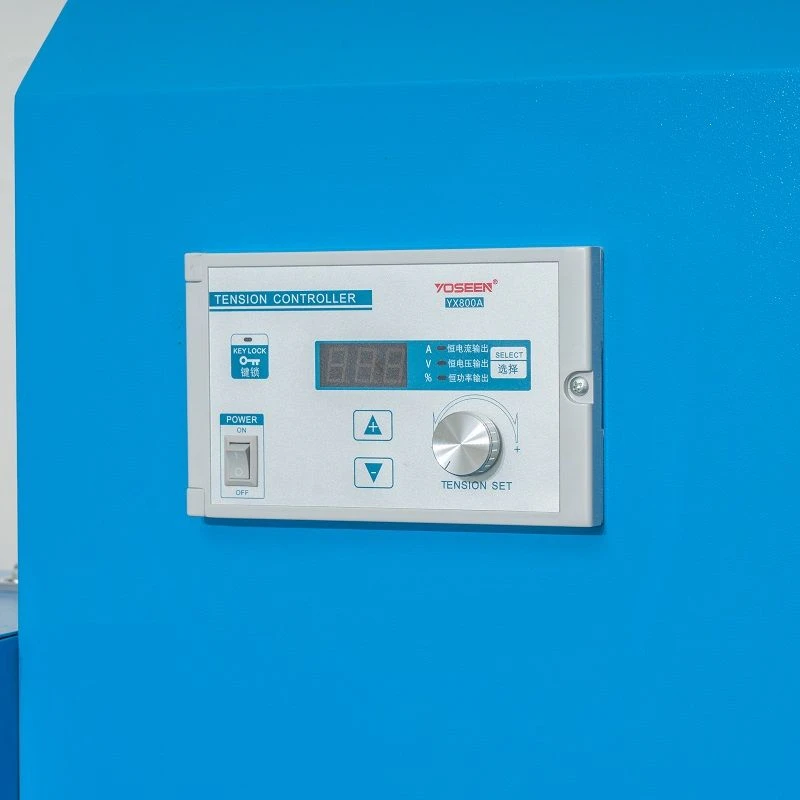

Sib Nqus |
Magnetic resistance mechanical tensioner |
Magnetic resistance mechanical tensioner |
|
Square Hlau Mechanism |
Mechanical passive them nyiaj |
Sib nqus hmoov hluav taws xob tension pay-off stand |
|
Qhov ntev |
1300mm (L) * 800 hli (W) * 900mm (H) |
1300mm (L) * 800 hli (W) * 900mm (H) |
|
Khoom hnyav |
140 KG |
160 KG |

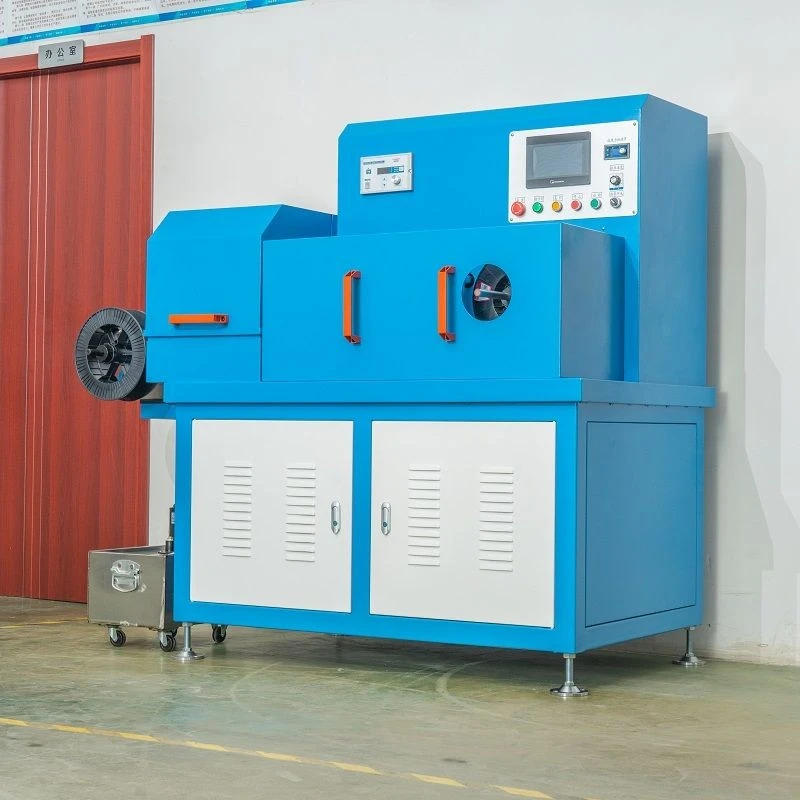

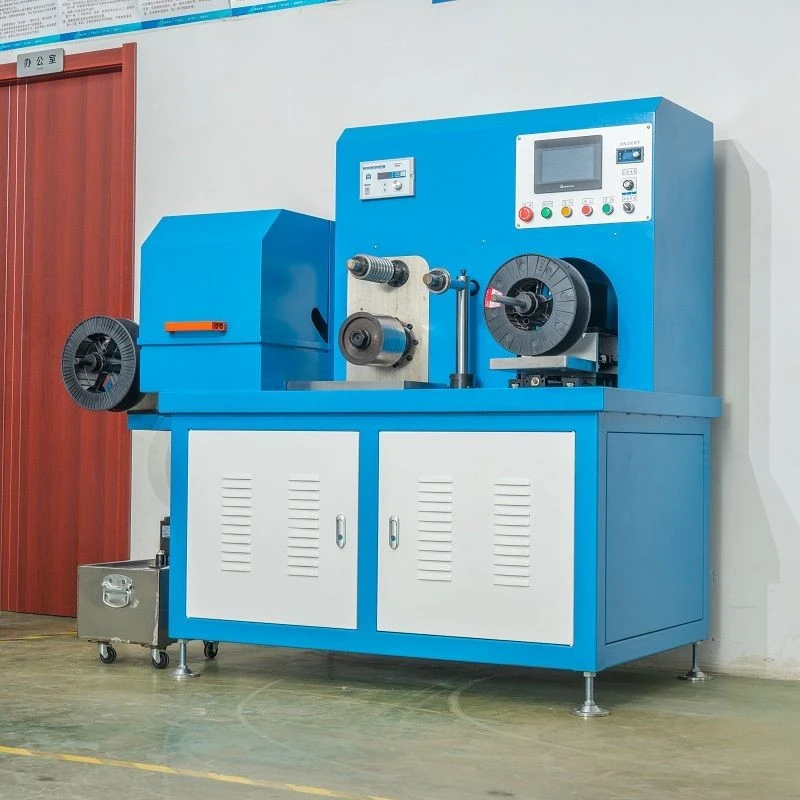

SQ-A200C winding tshuab yog tus kheej tsim los ntawm Suzhou Shuangqing Electronic Machinery Co., Ltd. Nws yog tsim rau ntau hom nickel-titanium square thiab round super elastic round xov hlau, orthodontic npib tsib xee-titanium hniav arch xov hlau, thiab oval bracket hniav arch hlau molding. Kev kho hniav koov hlau winding tshuab yog cov cuab yeej siv kho mob tsim khoom siv hauv kev kho hniav orthodontics.
Khoom nta
1. Servo configuration, kov npo input, txuag hluav taws xob thiab kev tiv thaiv ib puag ncig, kev ua haujlwm yooj yim thiab tsis muaj kev saib xyuas;
2. Txoj hauj lwm ntawm lub taub hau hlau tuaj yeem kho sab laug thiab sab xis thaum lub sij hawm winding txheej txheem, uas yog yooj yim dua rau winding ntawm tshwj xeeb coils los yog high-precision coils, thiab tuaj yeem pab nrhiav qhov pib thiab txoj hauj lwm ntawm winding;
3. 0-999 cov kauj ruam teeb tsa muaj peev xwm, tshwj xeeb servo lub cev muaj zog winding thiab xaim kev teeb tsa, tuaj yeem yooj yim teeb tsa rau pem hauv ntej thiab thim rov qab, sib sib zog nqus thiab ntom winding ua haujlwm;
4. Kev kub ceev thiab qis tuaj yeem ua tau raws li qhov xav tau;
5. Workbench desktop qauv, siab mechanical zog, kev ua tau zoo nyob rau hauv winding tuab thiab nyias nyob ntawm tej, pneumatic thrust tailstock swb tsim, ceev thiab ruaj khov clamping ntawm workpieces;
6. Cov neeg kho tshuab magnetic damping tensioner tsim tswj cov winding nro rau kev ua haujlwm du, zoo nkauj xaim thiab ua haujlwm siab.
Khoom Paub meej
Txoj cai thiab kev ua haujlwm
Nws yog tsuas yog siv los ua kom cua tshuab cov hniav hlau ntawm cov pwm raws li cov duab tshwj xeeb thiab qhov loj me los tsim cov kab hniav ntawm tus kheej uas ua tau raws li qhov xav tau ntawm qhov ncauj orthodontic ntawm cov neeg mob sib txawv. Nws tuaj yeem tswj tau lub kaum sab xis, qhov nkhaus thiab lwm yam tsis zoo ntawm cov hniav arch hlau, kom cov hniav arch hlau tuaj yeem ua tau zoo dua rau tus neeg mob txoj kev kho hniav, ua lub luag haujlwm zoo hauv kev kho hniav, thiab pab kho hniav thiab kev kho hniav.
Qhov zoo
Kev kho hniav koov hlau uas tsim los ntawm lub tshuab winding tuaj yeem txhim kho qhov tseeb thiab ua haujlwm ntawm kev kho hniav orthodontic. Piv nrog rau manually khoov khoov koov hlau, nws yog ntau standardized thiab tswj, txo tib neeg yuam kev, thiab pab txhim kho cov nyhuv thiab zoo ntawm orthodontic kev kho mob.
FAQ
Q: Koj puas yog cov chaw tsim khoom lossis lub tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom, chaw tsim khoom.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: Peb xa tawm thaum them nyiaj.
Q: Lub sijhawm lav ntev npaum li cas?
A: Lub sijhawm lav: 1 xyoos
Q: Puas yog winding tshuab programming nyuaj?
A: Qhov no nyob ntawm qhov tshwj xeeb winding tshuab qauv. Yooj yim winding tshuab programming yog ib qho yooj yim thiab tuaj yeem ua tiav los ntawm kev teeb tsa ob peb yam yooj yim, xws li tus lej hloov, winding ceev, thiab lwm yam. Txawm li cas los xij, qee lub tshuab winding nyuaj siv rau winding ntau yam ntawm cov coils nyuaj yuav nyuaj rau qhov kev pab cuam. , xav kom cov neeg ua haujlwm paub txog cov lus programming lossis kev khiav haujlwm software los teeb tsa ntau yam tsis xws li txoj kev winding thiab txoj kev xaim.
